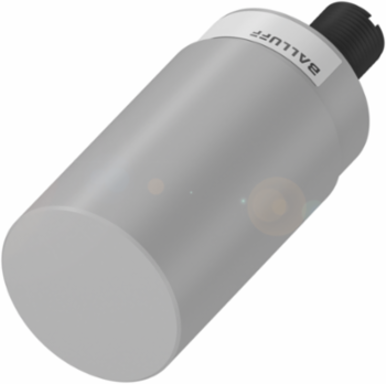

Balluff BCS G34OOI2-PSC15D-S04K Capacitive Sensor, 34 x 77 mm, 10-30 VDC, IP67, 2-15 mm Range
- MPN: BCS G34OOI2-PSC15D-S04K
- PPN: BAL-BCS00UJ
CAD
$336.56
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 10-30 VDC |
|---|---|
| Switching Output | PNP Normally open (NO) |
| Sensitivity | Switching distance adjustable |
| Voltage Drop Static Max. | 1.5 V |
| Repeat Accuracy Max. | 5 % of Sr |
| Ambient Temperature | -5 to 85 B0C |
| Dimension | D8 34 x 77 mm |
| Installation | Flush mounting |
| Material Sensing Surface | POM |
| IP Rating | IP67 |
| Basic Standard | IEC 60947-5-2 |
| Switching Frequency | 100 Hz |
|---|---|
| Range | 2-15 mm |
| Rated Operating Current | 100 mA |
| Hysteresis Max. | 15 % of Sr |
| Temperature Drift Max. | 20 % of Sr (-5 to 55 B0C) |
| Storage Temperature | -25 to 85 B0C |
| Connection | M12x1-Male, 4-pin |
| Housing Material | POM |
| Cover Material | PBT, PA |
| Approval/Conformity | CE, cULus, WEEE |
| Series | G34 |
