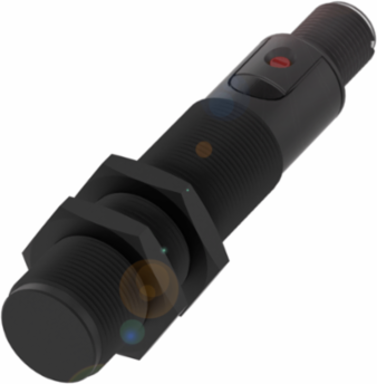

Balluff BCS M18BBI3-NOC80D-S04K Capacitive Sensor, 18 x 88.5 mm, IP67, 1-8 mm Sensing Range
- MPN: BCS M18BBI3-NOC80D-S04K
- PPN: BAL-BCS00MK
CAD
$189.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 10-30 VDC |
|---|---|
| Range | 1-8 mm |
| Output Type | NPN Normally closed (NC) |
| Ambient Temperature Range | -25 to 85 C |
| Size | 18 x 88.5 mm |
| Connection | M12x1-Male, 3-pin |
| Material Sensing Surface | PBT |
| Series | M18 |
| Basic Standard | IEC 60947-5-2 |
| Switching Frequency | 100 Hz |
|---|---|
| Sensitivity | Switching distance adjustable |
| IP Rating | IP67 |
| Installation | Flush mounting |
| Thread Size | M18x1 |
| Material Housing | PBT |
| Material Cover | PBT, PA |
| Compliance | CE, cULus, WEEE |
