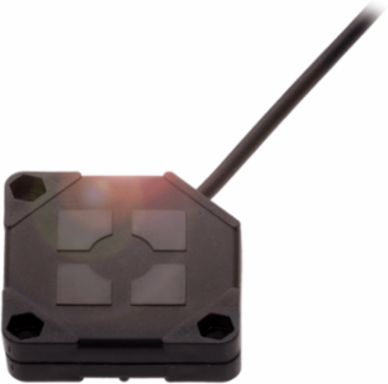

Balluff BCS Q40BBAA-GPC20C-EP03 Capacitive Sensor, 1-20 mm Range, IP67, PBT Material, CE Approved


Balluff BCS Q40BBAA-GPC20C-EP03 Capacitive Sensor, 1-20 mm Range, IP67, PBT Material, CE Approved
- MPN: BCS Q40BBAA-GPC20C-EP03
- PPN: BAL-BCS00ZH
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$141.10/ EA
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Specifications
Specifications
- Dimension
- 40 x 40 x 10 mm
- Installation
- for flush mounting
- Switching output
- PNP/NPN NO/NC programmable
- Range
- 1-20 mm
- Housing material
- PBT
- Ambient temperature
- -5-85 °C
- Approval/Conformity
- CE, cULus, WEEE
SeriesQ40
ConnectionCable, 3.00 m, PUR
Switching frequency100 Hz
SensitivitySwitching distance adjustable
Material sensing surfacePBT
Operating voltage Ub10-30 VDC
IP ratingIP67
