Balluff

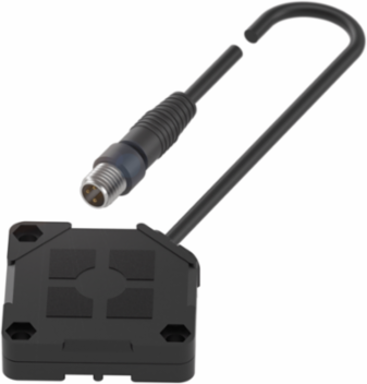

Balluff BCS Q40BBAA-POC20C-EP00,3-GS49 Capacitive level sensors without media contact BCS Q40BBAA-POC20C-EP00,3-GS49

Capacitive level sensors without media contact BCS Q40BBAA-POC20C-EP00,3-GS49
  • MPN: BCS Q40BBAA-POC20C-EP00,3-GS49
  • PPN: BAL-BCS00U5

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$138.25/ EA

Description

These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected through glass and plastic walls with their active surface and without contact.

Specifications

Specifications

Dimension
40 x 40 x 10 mm
Installation
for flush mounting
Switching output
PNP Normally closed (NC)
Sensitivity
Switching distance adjustable
Material sensing surface
PBT
Operating voltage Ub
10-30 VDC
IP rating
IP67
SeriesQ40
ConnectionCable with connector, M8x1-Male, 3-pin, 0.30 m, PUR
Switching frequency100 Hz
Housing materialPBT
Ambient temperature-5-85 °C
Approval/ConformityCE, cULus, WEEE
