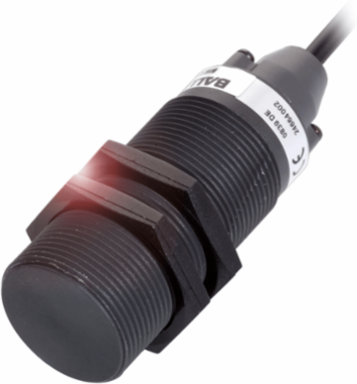

Balluff BCS M30BBM3-PPC20C-EP02 Capacitive Sensor, 30 mm, PBT, 10-35 VDC, 1-20 mm Detection Range
- MPN: BCS M30BBM3-PPC20C-EP02
- PPN: BAL-BCS004K
CAD
$230.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 10-35 VDC |
|---|---|
| Range | 1-20 mm |
| Thread Size | M30 x 1.5 |
| Ambient Temperature Range | -30 to 70 C |
| Housing Material | PBT |
| Connection | Cable, 2 m, PUR |
| Series | M30 |
| Sensitivity | Switching distance adjustable |
| Switching Frequency | 100 Hz |
|---|---|
| Switching Output | PNP NO/NC programmable |
| Dimension | 30 mm diameter, 82 mm length |
| Material | PBT |
| IP Rating | IP66 |
| Approval/Conformity | CE, cULus, WEEE |
| Installation | For flush mounting |
