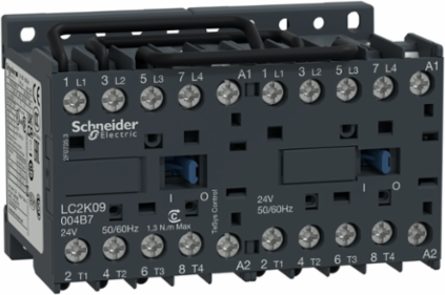

Schneider Electric LC2K09004M7 Changeover contactor,TeSys K,4P,AC,1,<=440V 20A,220...230V AC coil
Schneider Electric LC2K09004M7 Changeover contactor,TeSys K,4P,AC,1,<=440V 20A,220...230V AC coil
- MPN: LC2K09004M7
- PPN: SCH-LC2K09004M7
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$207.65/ EA
Description
Changeover contactor,TeSys K,4P,AC,1,<=440V 20A,220...230V AC coil
Specifications
Environment
- Mechanical Robustness
- shocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27 || shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27 || shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 || shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27 || shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27 || shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27 || vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 || vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6
- Height
- 58 mm
- Flame Retardance
- V1 UL 94 || requirement 2 NF F 16-101 || requirement 2 NF F 16-102
- Protective Treatment
- TC IEC 60068 || TC DIN 50016
- Operating Altitude
- 2000 m without derating
- Depth
- 57 mm
Ambient Air Temperature For Operation-25-50 °C
Net Weight0.38 kg
Ambient Air Temperature For Storage-50-80 °C
Ip Degree Of ProtectionIP20 VDE 0106
Width90 mm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1503003EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1503003EN
Complementary
- Control Circuit Voltage Limits
- operational: 0.8...1.15 Uc (at <50 °C) || drop-out: 0.2...0.75 Uc (at <50 °C)
- Hold-In Power Consumption In Va
- 4.5-4.5 VA (at 20 °C)
Inrush Power In Va30-30 VA (at 20 °C)
Heat Dissipation1.3-1.3 W
Specifications
- Product Certifications
- CB Scheme || CCC || UL || CSA || EAC || CE || UKCA
- [Uc] Control Circuit Voltage
- 220...230 V AC 50/60 Hz
- Average Impedance
- 3 mOhm - Ith 20 A 50 Hz for power circuit
- Standards
- EN/IEC 60947-4-1 || GB/T 14048.4 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || JIS C8201-4-1
- Control Circuit Type
- AC 50/60 Hz
- Contactor Application
- resistive load
- Product Or Component Type
- changeover contactor
- Product Name
- TeSys K
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Range
- TeSys
- Device Presentation
- preassembled with reversing power busbar
- [Ie] Rated Operational Current
- 20 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
- Electrical Durability
- 0.16 Mcycles 20 A AC-1 <= 690 V
- Poles Description
- 4P
- Tightening Torque
- 0.8-1.3 N.m screw clamp terminals Philips No 2 || 0.8-1.3 N.m screw clamp terminals flat Ø 6 mm || 0.8-1.3 N.m screw clamp terminals pozidriv No 2
- [Ui] Rated Insulation Voltage
- power circuit 600 V UL 508 || power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA C22.2 No 14
- Device Short Name
- LC2K
Interlocking Typemechanical
[Ue] Rated Operational Voltagepower circuit 690 V AC 50/60 Hz
[Ith] Conventional Free Air Thermal Current20 A (at 60 °C) for power circuit
Mounting Supportrail || plate
Safety Reliability LevelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Rated Breaking Capacity110 A at 220...230 V conforming to IEC 60947 || 110 A at 380...400 V conforming to IEC 60947 || 110 A at 415 V conforming to IEC 60947 || 110 A at 440 V conforming to IEC 60947 || 80 A at 500 V conforming to IEC 60947 || 70 A at 660...690 V conforming to IEC 60947
Irms Rated Making Capacity110 A AC for power circuit conforming to IEC 60947
Associated Fuse Rating25 A gG at <= 440 V for power circuit || 25 A aM for power circuit
Connections - Terminalsscrew clamp terminals 1 1.5-4 mm²solid || screw clamp terminals 1 0.75-4 mm²flexible without cable end || screw clamp terminals 1 0.34-2.5 mm²flexible with cable end || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 2 0.75-4 mm²flexible without cable end || screw clamp terminals 2 0.34-1.5 mm²flexible with cable end
Pole Contact Composition4 NO
Utilisation CategoryAC-1
Maximum Operating Rate3600 cyc/h
Mechanical Durability5 Mcycles
Operating Time10...20 ms coil energisation and NO closing || 10...20 ms coil de-energisation and NO opening
Overvoltage CategoryIII
Device Applicationcontrol
[Icw] Rated Short-Time Withstand Current90 A 50 °C - 1 s for power circuit || 85 A 50 °C - 5 s for power circuit || 80 A 50 °C - 10 s for power circuit || 60 A 50 °C - 30 s for power circuit || 45 A 50 °C - 1 min for power circuit || 40 A 50 °C - 3 min for power circuit || 20 A 50 °C - >= 15 min for power circuit
