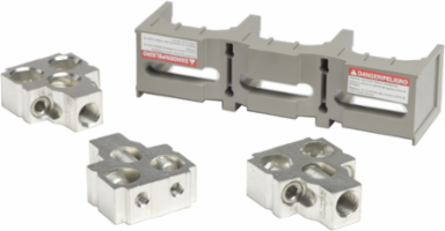

Square D AL800M23K4 PowerPacT Lug Kit, Mechanical 800A, 3/0 AWG 500 kcmil Cu or Al
- MPN: AL800M23K4
- UPC: 785901910053
- PPN: SCH-AL800M23K4
CAD
$736.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The AL800M23K4 PowerPacT Lug Kit from Schneider Electric is designed to ensure reliable connectivity and performance within high-capacity power distribution systems. This mechanical lug kit accommodates conductors ranging from 3/0 AWG to 500 kcmil and is suitable for both copper and aluminum wiring, making it an adaptable choice for various applications. As an essential accessory within the circuit breaker category, this kit enhances the efficiency and safety of electrical installations, providing robust connections for systems demanding up to 800A. Its thoughtful engineering reflects Schneider Electric's commitment to quality and innovation in power distribution solutions.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
Physical Attributes
| Kcmil Size | 500 kcmil |
|---|
Complementary Attributes
| Line Rated Current | 800-800 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Location Of Connection | downstream, upstream |
| Range Of Product | PowerPact M, PowerPact P |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Scope Perimeter | Outside of Europe |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | AWG 3/0...500 kcmil aluminium/copper |
| Material | aluminium |
| Product Or Component Type | mechanical lug |
| Returnability | Yes |
| Tightening Torque | 50-50 N.m 95-240 mm² (AWG 3/0...500 kcmil) |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536908585 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Mounting Mode | unit mount, I-Line |
| Certificate Agency | UL, CSA |
| Local Publishable Date | 2025-11-13 |
| Stocking Flag | Y |
| Traceability | No |
| Weee Scope | Out |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1516 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quantity Per Set | set of 4 |
| Sustainable Packaging | No |
| Accessory / Separate Part Category | connection accessory |
| Package Weight(Lbs) | 1.361 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Take Back | No |
|---|---|
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
General Attributes
| Range Of Product | PowerPact M, PowerPact P |
|---|
| Product Or Component Type | mechanical lug |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
