Square D

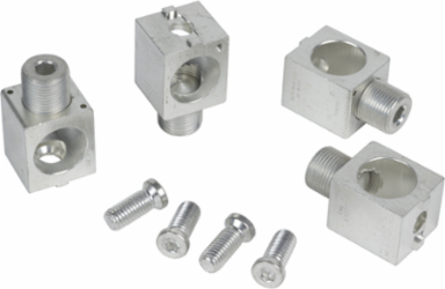

Square D AL400L61K4 Circuit breaker accessory, PowerPacT L, lug kit, mechanical, 250A, 4 pole, Al

Circuit breaker accessory, PowerPacT L, lug kit, mechanical, 250A, 4 pole, Al
  • MPN: AL400L61K4
  • UPC: 785901309673
  • PPN: SCH-AL400L61K4

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$400.94/ EA

Description

This lug kit is a connector accessory for PowerPact L-Frame circuit breakers. This connector accessory is made of aluminum and for a 4 pole circuit breaker. This accessory has a rated current of 250 amps. The lug kit are for terminal connection and will accept a wire size of AWG 2 with a 600 kcmil. This product complies with UL standards. This lug can be used only on standard circuit breakers. This lug has a tightening torque of 50-50 Nm, with a cable cross section of 35-240 mm².

Specifications

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1407012EN
Pvc Free
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1407012EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Complementary

[In] Rated Current
250-250 A
Tightening Torque
50-50 N.m 35-240 mm² AWG 2...500 kcmil)
Material
aluminium
Mounting Modeunit mount
Awg GaugeAWG 2...600 kcmil copper

Specifications

Range Of Product
PowerPact L
Product Or Component Type
mechanical lug
Quantity Per Setset of 4

Environment

Product Certifications
UL

Downloads
