Square D

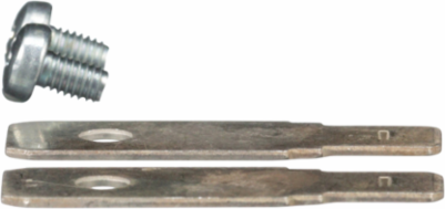

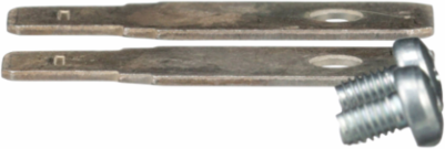

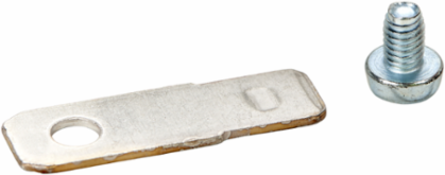

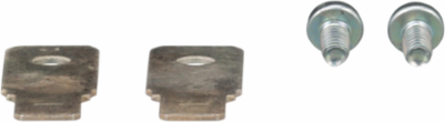

Square D S37423 PowerPact H Mechanical Lug Kit for Control Wire, Set of 2

PowerPact H Mechanical Lug Kit for Control Wire, Set of 2
PowerPact H Mechanical Lug Kit for Control Wire, Set of 2
PowerPact H Mechanical Lug Kit for Control Wire, Set of 2
PowerPact H Mechanical Lug Kit for Control Wire, Set of 2
PowerPact H Mechanical Lug Kit for Control Wire, Set of 2
  • MPN: S37423
  • UPC: 785901427933
  • PPN: SCH-S37423

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$101.55/ EA

Description

The PowerPact™ H-, J-, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H- and J-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. L-frame circuit breakers are available with Micrologic electronic trip units only. H- and J-frame circuit breakers with thermal-magnetic trip units contain individual thermal (overload) and instantaneous (short circuit) sensing elements in each pole. The amperage ratings of the thermal trip elements are calibrated at 104°F (40°C) free air ambient temperature. Per the National Electric Code® (NEC®) and the Canadian Electrical Code, standard circuit breakers may only be applied continuously at up to 80% of their rating. Circuit breakers rated for 100% operation are available but require specially-designed enclosures and 194°F (90°C) rated wire. Far more than just a circuit breaker, these devices are a measurement and communication tool ready to meet energy-efficiency needs through optimized power requirements, increased energy availability, and improved installation management. This PowerPact multistandard connection kit is a wiring accessory. This device can be mounted by screws on either the top or bottom. This terminal kit is compatable with PowerPact H-Frame, PowerPact J-Frame & PowerPact L-Frame breakers and come in set of 2.

Specifications

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1311006EN
Pvc Free
Yes
Eu Rohs Directive
Compliant with Exemptions
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1311006EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold

Complementary

Mounting Mode
by screws
Quantity Per Set
set of 2
Tightening Torque1-1 N.m
Location Of Connectiontop or bottom

Specifications

Accessory / Separate Part Category
wiring accessory
Product Or Component Typemechanical lug

Downloads
