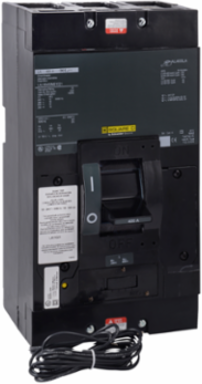

The Schneider Electric LAL36400WB Circuit Breaker is an exceptional solution for power distribution needs, designed to handle heavy-duty applications with a robust capacity of 400A. This thermal magnetic circuit breaker employs advanced technology to provide reliable protection against overloads and short circuits, ensuring the safety and efficiency of your electrical system. With a compact height of 11 inches, it fits seamlessly into various setups while maintaining top performance in demanding environments. Its 3-pole configuration and compatibility with 600VAC systems make it an ideal choice for effective and dependable circuit management in industrial and commercial applications.
Documentation & Downloads
Technical Drawing
User guide
Instruction sheet
Key Downloads
Certificate
Environmental Disclosure
Specifications
Additional
Amperage
400 A
Poles
3P
Magnetic Tripping Current
4000 A
Circuit Breaker Application
HACR rated
Tightening Torque
13 N.m, AWG 1–600 kcmil range
Width
6 in
Certifications
UL Listed, IEC, CSA
PVC Free
Yes
Country of Origin
Mexico
Voltage600 VAC
Magnetic Hold Current2000 A
Trip Unit TechnologyThermal-magnetic
Terminal TypeLugs, load and line
Height11 in
Depth5.84 in
ComplianceEU RoHS Compliant with Exemptions, Mercury free, China RoHS
Halogen ContentHalogen free plastic parts
Mounting ModeUnit mount
