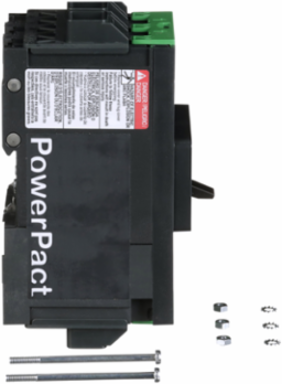

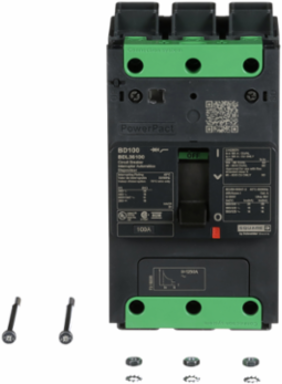

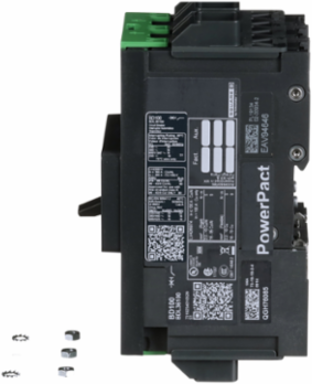

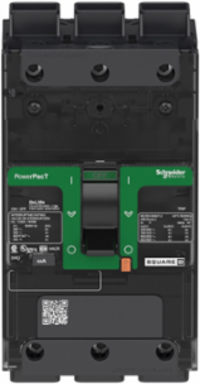

Square D BDL36100 PowerPacT B Circuit Breaker 100A 3 Pole 600Y/347VAC 14kA
- MPN: BDL36100
- PPN: SCH-BDL36100
CAD
$2160.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit features EverLink lugs, a patented design to reduce loosening of cables over time, on both termination ends. This PowerPacT B, 100A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 80 mm
Physical Attributes
- Color
- Gray RAL 7016)
Wire Stripping Length20 mm
Complementary Attributes
- Line Rated Current
- 100-100 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Awg Gauge
- AWG 6...AWG 2/0 fine stranded aluminium/copper, AWG 14...AWG 3/0 rigid or stranded aluminium/copper
- Mounting Mode

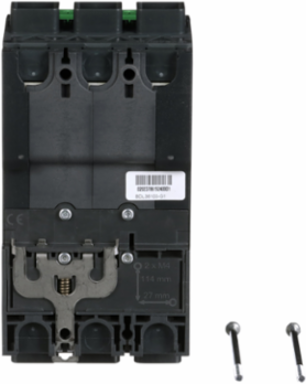

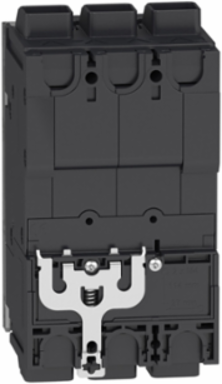

- clip-on 35 x 15 mm symmetrical DIN rail), by screws plate)
- Tightening Torque
- 5-5 N.m 2.5-16 mm² (AWG 14...AWG 4), 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)
- [Ics] Rated Service Breaking Capacity
- 25 kA 220...240 V AC 50/60 Hz IEC 60947-2, 14 kA 500...525 V AC 50/60 Hz IEC 60947-2, 18 kA 380...415 V AC 50/60 Hz IEC 60947-2, 18 kA 440 V AC 50/60 Hz IEC 60947-2
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 2 kg CO2 eq., 2.2223624293247255
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 7 kg CO2 eq., 6.9840065027260945
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Circuit Breaker Application
- HACR rated
- Continuous Current Rating
- 80 %
- Device Application
- distribution
- Electrical Durability
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Local Signalling
- presence of auxiliary contacts flag green)
- Network Frequency
- 50/60 Hz
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- circuit breaker
- Quantity Per Set
- set of 1
- Returnability
- Yes
- Suitability For Isolation
- yes IEC 60947-2
- Total Lifecycle Carbon Footprint
- 227 kg CO2 eq.
- Utilisation Category
- category A
- Pep Code
- ENVPEP2311047EN
- Pep Verification Date
- 2025-05-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.

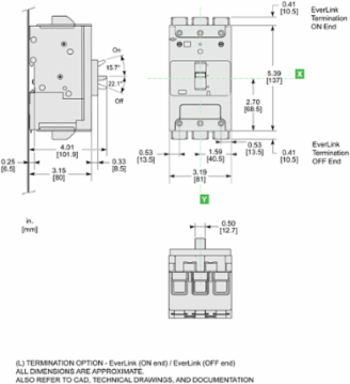

- Height Nominal
- 137 mm
- [Ue] Rated Operational Voltage
- 525 V AC 50/60 Hz UL 489
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Electrical ConnectionEverlink lug, line, Everlink lug, load
Number Of Slots1 auxiliary switch OF plug-in), 1 voltage release MN or MX plug-in), 1 alarm switch SD plug-in)
Certificate AgencyUL, IEC, CCC, EAC, CSA, NOM
Carbon Footprint Of The Distribution Phase [A4]0, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.3807150366599, 0.4 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]217 kg CO2 eq., 217.38591582952733
Local Publishable Date2026-03-25
Stocking FlagN
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category4
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1909
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Connection Pitch27 mm
Control Typetoggle
Device Short NameBD 100
Energy Efficiency OptimizedFalse
Mechanical Durability20000 cycles IEC 947-1 Annex K ed 5.2
Number Of Poles3P
Product NamePowerPact B
Quality LabelsCE
RangePowerPact
Software Versionv6.2.5-6
Sustainable PackagingYes
Trip Unit Technologythermal-magnetic
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential, In %55
Width Nominal81 mm
[Ui] Rated Insulation Voltage800 V IEC 60947-2
Halogen-free StatusHalogen free product
Package Weight(Lbs)1.42 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -50-85 °C, -50-85 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 226.97299979823805
- Environmental Disclosure
- ENVPEP2311047EN
- Halogen Content Performance
- Halogen free product
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-05-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-25-70 °C, -25-70 °C
Operating Altitude< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, 5000 m with derating
Halogene PerformanceHalogen free product
Mercury FreeYes
9 Mm Pitches9
Eu Rohs DirectiveCompliant By Exemption
Ip Degree Of Protectionfront cover IP40 IEC 60529
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2311047EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- circuit breaker
