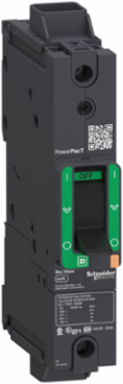

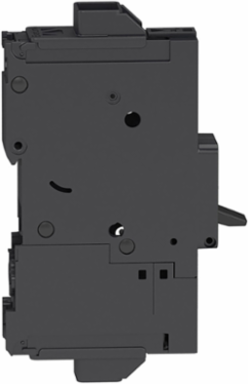

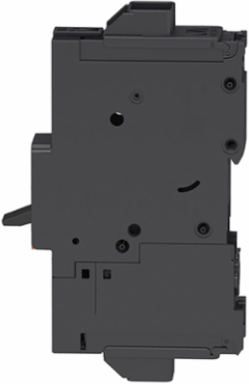

Schneider Electric BDL16125 Circuit breaker, PowerPacT B, 125A, 1 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80%
- MPN: BDL16125
- PPN: SCH-BDL16125
- UNSPSC: 39121601
CAD
$1263.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit features EverLink lugs, a patented design to reduce loosening of cables over time, on both termination ends. This PowerPacT B, 125A, 1 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Documentation & Downloads
Specifications
Key Specifications
- Length
- 20 mm
- Height
- 137 mm
- Product Or Component Type
- circuit breaker
- Range
- PowerPact
- Device Short Name
- BD 125
Width27 mm
Weight0.51 kg
Product NamePowerPact B
Device Applicationdistribution
Complementary
- Mounting Mode
- clip-on 35 mm symmetrical DIN rail) || by screws plate)
- [Ics] Rated Service Breaking Capacity
- 25 kA 220...240 V AC 50/60 Hz IEC 60947-2
- Trip Unit Name
- TM-D
- Connection Pitch
- 27 mm
- Tightening Torque
- 5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)
- 9 Mm Pitches
- 3
- Electrical Connection
- Everlink lug, line || Everlink lug, load
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Circuit Breaker Application
- HACR rated
- Line Rated Current
- 125-125 A
- Continuous Current Rating
- 80 %
- [Ui] Rated Insulation Voltage
- 800 V IEC 60947-2
- Suitability For Isolation
- yes IEC 60947-2
- Poles Description
- 1P
- Awg Gauge
- AWG 6...AWG 2/0 fine stranded aluminium/copper || AWG 14...AWG 3/0 rigid or stranded aluminium/copper
- Width
- 27 mm
Network Frequency50/60 Hz
Trip Unit Technologythermal-magneticTM-D,
Height137 mm
[Ue] Rated Operational Voltage240 V AC 50/60 Hz UL 489
Breaking Capacity CodeD
Protected Poles Description1t
Net Weight0.51 kg
Control Typetoggle
Wire Stripping Length20 mm
Utilisation Categorycategory A
Breaking Capacity25 kA 208Y/120 V AC 50/60 Hz UL 489 || 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480Y/277 V AC 50/60 Hz UL 489 || 10 kA 125 V DC 50/60 Hz UL 489 || 14 kA 600/347 V AC 50/60 Hz UL 489
Mechanical Durability15000 cycles IEC 947-1 Annex F ed 5.2
Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2 In
Quantity Per Setset of 1
ColorGray RAL 7016)
Depth80 mm
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1610005EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Halogen Content PerformanceHalogen free product
Environment
- Ik Degree Of Protection
- IK07 conforming to IEC 62262
- Standards
- EN/IEC 60947-5-1 || UL 489 || GB 14048.2 || NMX J-266 || CSA C22.2 No 5 || EN/IEC 60947-2 || NEMA AB1
- Ip Degree Of Protection
- front cover IP40 IEC 60529
- Ambient Air Temperature For Storage
- -50-85 °C
- Operating Altitude
- 6561.68 ft (2000 m) without derating || 5000 m with derating
Ambient Air Temperature For Operation-25-70 °C
Product CertificationsUL || IEC || CCC || EAC || CSA || NOM
Pollution Degree3 IEC 60947-1
Quality LabelsCE
