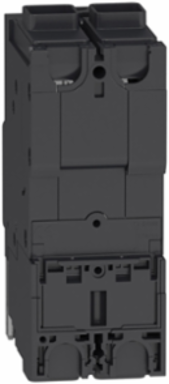

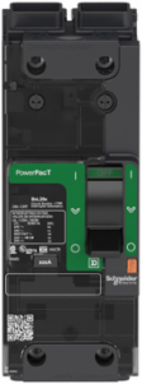

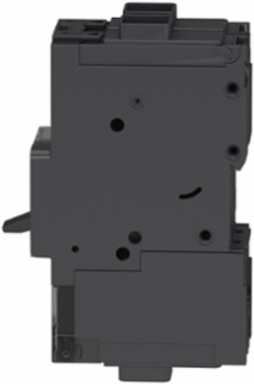

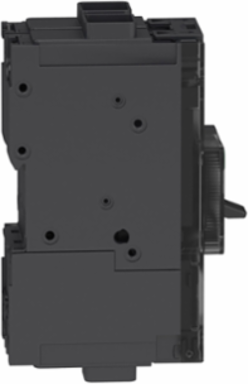

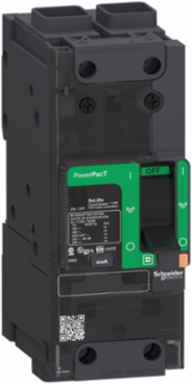

Square D BJF26125 PowerPact B Circuit Breaker, 125A, 2 Pole, 600Y/347VAC, 25kA
- MPN: BJF26125
- PPN: SCH-BJF26125
CAD
$4243.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for optimal performance in power distribution applications, this circuit breaker from Schneider Electric provides robust protection for your electrical systems. Featuring a 125A capacity and a 2-pole configuration, the PowerPact B model is designed to handle voltages up to 600Y/347VAC, ensuring reliable operation under varying conditions. With a short-circuit rating of 25kA, it offers enhanced safety and peace of mind, making it a vital component for modern electrical installations. This breaker is ideal for professionals looking to maintain system integrity and efficiency in demanding environments.
Documentation & Downloads
Specifications
Additional
- Amperage
- 125 A
- Breaking Capacity
- 100 kA 208Y/120 V AC, 100 kA 240 V AC, 65 kA 480/277 V AC, 65 kA 480 V AC, 25 kA 600Y/347 V AC, 50 kA 250 V DC
- Frequency
- 50/60 Hz
- Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Continuous Current Rating
- 80 %
- Utilisation Category
- Category A
- Electrical Durability
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- AWG Gauge
- AWG 14...AWG 8 aluminum/copper, AWG 6...AWG 3/0 aluminum/copper
- Mounting Mode
- Clip-on 35 mm symmetrical DIN rail, By screws plate
- Tightening Torque
- 5 N.m (44.25 lbf.in) for AWG 14...AWG 4, 9 N.m (79.66 lbf.in) for AWG 3...AWG 3/0
- Power Wire Stripping Length
- 20 mm (0.79 in)
- Height
- 137 mm (5.39 in)
- Depth
- 80 mm (3.15 in)
- Circuit Breaker Application
- HACR rated
- Standards
- NMX J-266, EN/IEC 60947-2, EN/IEC 60947-5-1, CSA C22.2 No 5, GB 14048.2, UL 489, NEMA AB1
- IP Degree of Protection
- Front cover IP40 IEC 60529
- Pollution Degree
- 3 IEC 60947-1
- Ambient Air Temperature for Storage
- -50 to 85 °C (-58 to 185 °F)
- Country of Origin
- US
- California Proposition 65
- Warning: Cancer and Reproductive Harm
- Mercury Free
- Yes
- RoHS Exemption Information
- Yes
- Halogen Content Performance
- Halogen free product
Voltage600Y/347 V AC
Rated Operational Voltage690 V AC 50/60 Hz UL 489
Rated Service Breaking Capacity100 kA 220...240 V AC, 25 kA 500...525 V AC, 2.5 kA 690 V AC, 65 kA 380...415 V AC, 65 kA 440 V AC
Trip Unit TechnologyThermal-magnetic TM-D
Suitability for IsolationYes IEC 60947-2
Mechanical Durability15000 cycles IEC 947-1 Annex K ed 5.2
Connection Pitch27 mm (1.06 in)
Local SignallingPresence of auxiliary contacts flag (green)
Electrical ConnectionTerminal nut, ON and OFF end
Number of Slots1 auxiliary switch OF plug-in, 1 voltage release MN or MX plug-in
9 mm Pitches6
Width54 mm (2.13 in)
Net Weight0.669 kg (1.47 lb)
Quality LabelsCE
Product CertificationsUL, IEC, CCC, EAC, CSA, NOM
IK Degree of ProtectionIK07 IEC 62262
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Operating Altitude2000 m (6562 ft) without derating, 5000 m with derating
Sustainable Offer StatusGreen Premium product
EU RoHS DirectiveCompliant with Exemptions
China RoHS RegulationProduct out of China RoHS scope
PVC FreeYes
