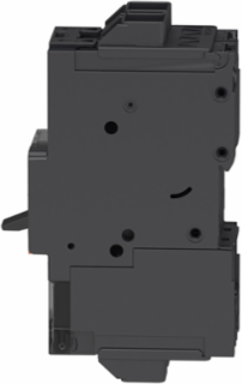

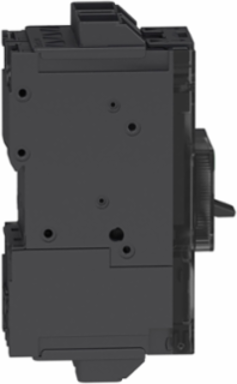

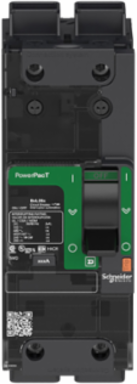

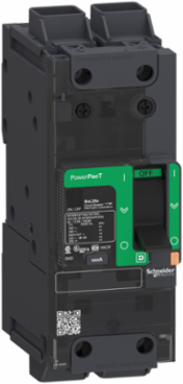

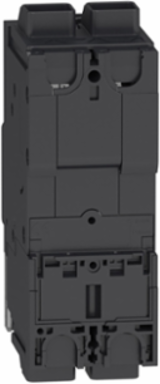

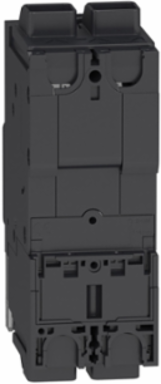

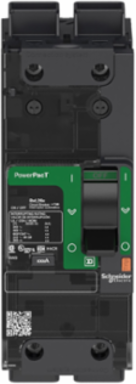

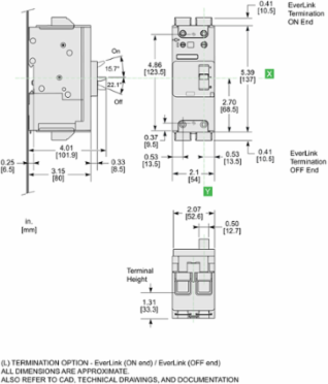

Schneider Electric BDL26015LU Circuit breaker, PowerPacT B, 15A, 2 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80%, control wire ON end
Schneider Electric BDL26015LU Circuit breaker, PowerPacT B, 15A, 2 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80%, control wire ON end
- MPN: BDL26015LU
- PPN: SCH-BDL26015LU
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1752.88/ EA
Description
Circuit breaker, PowerPacT B, 15A, 2 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80%, control wire ON end
Specifications
Environment
- Ik Degree Of Protection
- IK07 conforming to IEC 62262
- Standards
- NMX J-266 || UL 489 || CSA C22.2 No 5 || GB 14048.2 || NEMA AB1 || EN/IEC 60947-2 || EN/IEC 60947-5-1
- Ip Degree Of Protection
- front cover IP40 IEC 60529
- Ambient Air Temperature For Storage
- -50-85 °C
- Operating Altitude
- 2000 m without derating || 5000 m with derating
Ambient Air Temperature For Operation-25-70 °C
Product CertificationsUL || IEC || CCC || EAC || CSA || NOM
Pollution Degree3 IEC 60947-1
Quality LabelsCE
Complementary
- Mounting Mode
- clip-on 35 mm symmetrical DIN rail) || by screws plate)
- [Ics] Rated Service Breaking Capacity
- 25 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 18 kA 440 V AC 50/60 Hz IEC 60947-2
- Trip Unit Name
- TM-D
- Connection Pitch
- 27 mm
- Tightening Torque
- 5-5 N.m 2.5-16 mm² AWG 14...AWG 4) || 9-9 N.m 25-95 mm² AWG 3...AWG 3/0)
- 9 Mm Pitches
- 6
- Number Of Slots
- 1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in)
- Electrical Connection
- Everlink lug, line || Everlink lug, load
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Circuit Breaker Application
- HACR rated
- Utilisation Category
- category A
- Continuous Current Rating
- 80 %
- [Ui] Rated Insulation Voltage
- 800 V IEC 60947-2
- Suitability For Isolation
- yes IEC 60947-2
- Poles Description
- 2P
- Awg Gauge
- AWG 6...AWG 2/0 fine stranded aluminum/copper || AWG 14...AWG 3/0 rigid or stranded aluminum/copper
- Width
- 54 mm
Network Frequency50/60 Hz
Trip Unit Technologythermal-magneticTM-D,
Height137 mm
[Ue] Rated Operational Voltage525 V AC 50/60 Hz UL 489
Breaking Capacity CodeD
Local Signallingpresence of auxiliary contacts flag green)
Protected Poles Description2t
Net Weight0.769 kg
Control Typetoggle
Wire Stripping Length20 mm
[In] Rated Current15-15 A
Breaking Capacity25 kA 208Y/120 V AC 50/60 Hz UL 489 || 18 kA 240 V AC 50/60 Hz UL 489 || Icu 25 kA 480/277 V AC 50/60 Hz UL 489 || Icu 14 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600Y/347 V AC 50/60 Hz UL 489 || 14 kA 250 V DC UL 489 || 25 kA || Icu 18 kA
Mechanical Durability15000 cycles IEC 947-1 Annex K ed 5.2
Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Quantity Per Setset of 1
Colourgrey RAL 7016)
Depth80 mm
Specifications
- Product Or Component Type
- circuit breaker
- Range
- PowerPact
- Device Short Name
- BD 015
Product NamePowerPact B
Device Applicationdistribution
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1610005EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- N/A
- Halogen Content Performance
- Halogen free product
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
