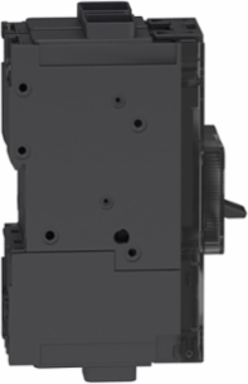

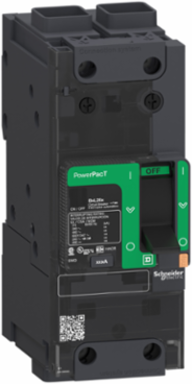

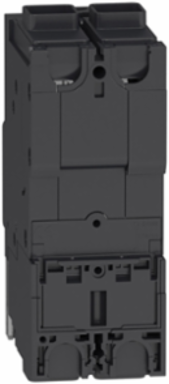

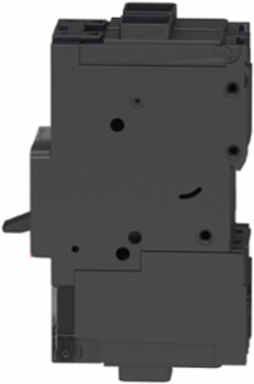

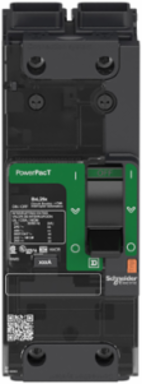

Square D BDF26020 PowerPact B Circuit Breaker, 20A, 2 Pole, 600Y/347VAC, 14kA
- MPN: BDF26020
- PPN: SCH-BDF26020
CAD
$1530.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Engineered for robust power distribution, this 20A, 2-pole circuit breaker from Schneider Electric is an essential component for ensuring electrical safety and reliability. Designed to operate at 600Y/347VAC with a short-circuit rating of 14kA, it effectively safeguards your electrical installations from overloads and faults. As part of the PowerPact B series, this molded case circuit breaker combines durability with high performance, making it a trusted choice for various applications within power distribution systems. Its efficient design not only meets the rigorous demands of modern electrical environments but also promises longevity and dependable service.
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Rated Current
- 20 A
- Breaking Capacity Code
- D
- Impulse Withstand Voltage
- 8 kV
- Continuous Current Rating
- 80%
- Mechanical Durability
- 15000 cycles
- Connection Pitch
- 27 mm (1.06 in)
- Mounting Mode
- Clip-on 35 mm DIN rail or screws plate
- Tightening Torque
- 5 N·m (44.25 lb·in) AWG 14 to AWG 4, 9 N·m (79.66 lb·in) AWG 3 to AWG 3/0
- Width
- 54 mm (2.13 in)
- Net Weight
- 0.669 kg (1.47 lb)
- Pollution Degree
- 3 IEC 60947-1
- Ambient Air Temperature for Storage
- -50 to 85 °C (-58 to 185 °F)
- IP Degree of Protection
- Front cover IP40 IEC 60529
- Standards
- NEMA AB1, UL 489, EN/IEC 60947-5-1, GB 14048.2, EN/IEC 60947-2, NMX J-266, CSA C22.2 No 5
- RoHS Compliance
- Compliant with Exemptions
- Halogen Content Performance
- Halogen free
- Color
- Gray RAL 7016
Voltage600Y/347 V AC
Breaking Capacity25 kA 220-240 V AC, 14 kA 500-525 V AC, 18 kA 380-415 V AC
Rated Operational Voltage525 V AC 50/60 Hz
Trip Unit TechnologyThermal-magnetic TM-D
Rated Insulation Voltage800 V
Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
AWG GaugeAWG 14 to AWG 8 aluminum/copper, AWG 6 to AWG 3/0 aluminum/copper
Electrical ConnectionTerminal nut, ON and OFF end
Height137 mm (5.39 in)
Depth80 mm (3.15 in)
Number of Poles2P
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Operating Altitude2000 m without derating, 5000 m with derating
IK Degree of ProtectionIK07 IEC 62262
Product CertificationsUL, IEC, CCC, EAC, CSA, NOM
Mercury FreeYes
PVC FreeYes
