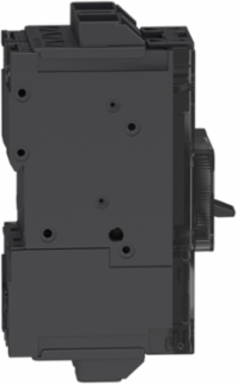

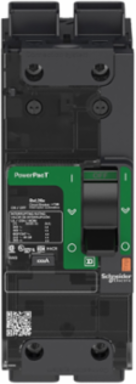

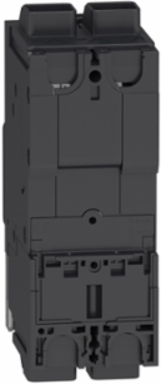

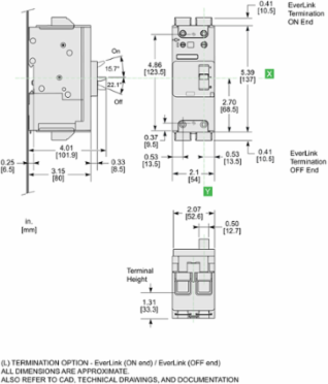

Schneider Electric BGL26020LU PowerPacT B Circuit Breaker, 20A, 2 Pole, 600Y/347VAC, 18kA
- MPN: BGL26020LU
- PPN: SCH-BGL26020LU
CAD
$2163.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric PowerPacT B Circuit Breaker is engineered for optimal performance within power distribution systems, offering dependable protection with its 20A, 2-pole configuration. Rated for 600Y/347VAC and capable of withstanding short circuits up to 18kA, this circuit breaker is designed to handle the demands of both residential and commercial applications. Its robust design ensures reliability in safeguarding electrical circuits, making it a critical component for those looking to enhance their electrical safety measures and maintain system integrity.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Depth80 mm
Physical Attributes
- Color
- Gray RAL 7016)
Wire Stripping Length20 mm
Complementary Attributes
- Line Rated Current
- 20-20 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- Everlink lug, line, Everlink lug, load
- Certificate Agency
- UL, IEC, CCC, EAC, CSA, NOM
- Carbon Footprint Of The Distribution Phase [A4]
- 0, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1925936884337516, 0.2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 116 kg CO2 eq., 116.28294817324564
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 4
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1909
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Circuit Breaker Application
- HACR rated
- Continuous Current Rating
- 80 %
- Device Application
- distribution
- Electrical Durability
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Mechanical Durability
- 15000 cycles IEC 947-1 Annex K ed 5.2
- Network Frequency
- 50/60 Hz
- Number Of Slots
- 1 auxiliary switch OF plug-in)1 voltage release MN or MX plug-in)
- Product Name
- PowerPact B
- Protected Poles Description
- 2t
- Quantity Per Set
- set of 1
- Returnability
- No
- Suitability For Isolation
- yes IEC 60947-2
- Total Lifecycle Carbon Footprint
- 121 kg CO2 eq.
- Trip Unit Technology
- thermal-magneticTM-D,
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 241.776
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 137 mm
- [Ue] Rated Operational Voltage
- 525 V AC 50/60 Hz UL 489
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536200020
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Tightening Torque5-5 N.m 2.5-16 mm² (14 AWG...4 AWG), 9-9 N.m 25-95 mm² (3 AWG...3/0 AWG)
[Ics] Rated Service Breaking Capacity65 kA 220...240 V AC 50/60 Hz IEC 60947-218 kA 500...525 V AC 50/60 Hz IEC 60947-235 kA 380...415 V AC 50/60 Hz IEC 60947-2, 35 kA 440 V AC 50/60 Hz IEC 60947-2
Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 1.124234495845757
Carbon Footprint Of The Manufacturing Phase [A1 To A3]4 kg CO2 eq., 3.533024553498018
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg Gauge6 AWG...2/0 AWG fine stranded aluminium/copper14 AWG...3/0 AWG rigid or stranded aluminium/copper
Connection Pitch27 mm
Control Typetoggle
Device Short NameBG 020
Local Signallingpresence of auxiliary contacts flag green)
Mounting Modeclip-on 35 mm symmetrical DIN rail)by screws plate)
Number Of Poles2P
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typecircuit breaker
Quality LabelsCE
RangePowerPact
Software Versionv6.2.5-6
Sustainable PackagingYes
Trip Unit NameTM-D
Utilisation Categorycategory A
Pep CodeENVPEP2311047EN
Pep Verification Date2025-05-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %55
Width Nominal54 mm
[Ui] Rated Insulation Voltage800 V IEC 60947-2
Halogen-free StatusHalogen free product
Package Weight(Lbs)680.389 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -50-85 °C, -50-85 °C, -50-85 °C, -50-85 °C
- Halogene Performance
- Halogen free product
- Mercury Free
- Yes
- 9 Mm Pitches
- 6
- Eu Rohs Directive
- Compliant By Exemption
- Ip Degree Of Protection
- front cover IP40 IEC 60529
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-05-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-25-70 °C, -25-70 °C, -25-70 °C, -25-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint121.13280091102317
Environmental DisclosureENVPEP2311047EN
Halogen Content PerformanceHalogen free product
Operating Altitude6561.68 ft (2000 m) without derating5000 m with derating
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2311047EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- circuit breaker
