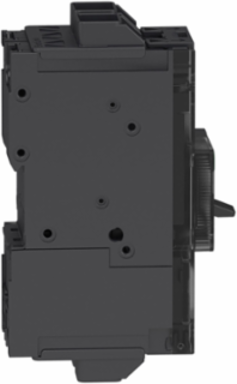

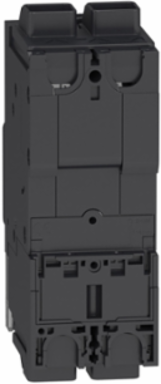

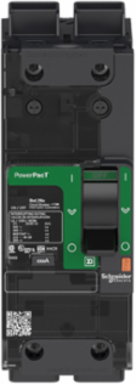

Schneider Electric BGL26030LU PowerPacT B Circuit Breaker 30A 2 Pole 600Y/347VAC 18kA
Schneider Electric BGL26030LU PowerPacT B Circuit Breaker 30A 2 Pole 600Y/347VAC 18kA
- MPN: BGL26030LU
- PPN: SCH-BGL26030LU
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2041.34/ EA
Description
This 30A 2 Pole circuit breaker from Schneider Electric is designed to provide exceptional protection and reliability in power distribution applications. Capable of handling 600Y/347VAC, it ensures robust performance with a fault interruption rating of 18kA, making it suitable for diverse electrical systems. The PowerPacT B series is known for its compact design, which facilitates easy installation while maintaining high levels of safety and efficiency. With its advanced engineering, this circuit breaker serves as a critical component for ensuring steady electrical flow and safeguarding against overloads in both commercial and industrial settings.
Specifications
- Rated Current
- 30 A
- Breaking Capacity
- 65 kA 220...240 V AC, 18 kA 600Y/347 V AC, 35 kA 380...480 V AC, 20 kA 250 V DC UL 489
- Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Continuous Current Rating
- 80 %
- Mounting Mode
- Clip-on 35 mm symmetrical DIN rail, By screws plate
- Connection Pitch
- 27 mm
- Tightening Torque
- 5 N.m for 2.5 to 16 mm², 9 N.m for 25 to 95 mm²
- Net Weight
- 0.769 kg
- Mercury Free
- Yes
- Pollution Degree
- 3 IEC 60947-1
- IK Degree of Protection
- IK07 IEC 62262
- Utilisation Category
- Category A
- Electrical Durability
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Standards
- EN/IEC 60947-5-1, NMX J-266, CSA C22.2 No 5, NEMA AB1, EN/IEC 60947-2, GB 14048.2, UL 489
- Quality Labels
- CE
- Ambient Air Temperature for Storage
- -50 to 85 6C
- Local Signalling
- Presence of auxiliary contacts flag green
- Color
- Gray RAL 7016
- Product Name
- PowerPact B
- Device Application
- Distribution
- Range
- PowerPact
- China Rohs Regulation
- Product out of China RoHS scope
- Eu Rohs Directive
- Compliant with Exemptions
Rated Operational Voltage525 V AC 50/60 Hz UL 489
Rated Service Breaking Capacity65 kA 220...240 V AC IEC 60947-2, 18 kA 500...525 V AC IEC 60947-2, 35 kA 380...415 V AC IEC 60947-2, 35 kA 440 V AC IEC 60947-2
Trip Unit TechnologyThermal-magnetic TM-D
Number of Poles2P

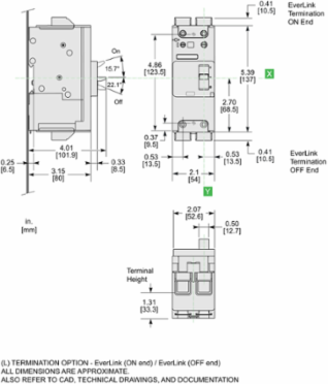

DimensionsHeight 137 mm, Width 54 mm, Depth 80 mm
Wire Stripping Length20 mm
AWG GaugeAWG 6 to AWG 2/0 fine stranded aluminum/copper, AWG 14 to AWG 3/0 rigid or stranded aluminum/copper
Halogen Content PerformanceHalogen free product
PVC FreeYes
IP Degree of ProtectionFront cover IP40 IEC 60529
Suitability For IsolationYes IEC 60947-2
Mechanical Durability15000 cycles IEC 947-1 Annex K ed 5.2
Network Frequency50/60 Hz
Product CertificationsUL, IEC, CCC, EAC, CSA, NOM
Ambient Air Temperature for Operation-25 to 70 6C
Operating Altitude2000 m without derating, 5000 m with derating
Number of Slots1 auxiliary switch OF plug-in, 1 voltage release MN or MX plug-in
Circuit Breaker ApplicationHACR rated
Device Short NameBG 030
Control TypeToggle
Sustainable Offer StatusGreen Premium product
Reach RegulationContains Substances of Very High Concern above threshold
Rohs Exemption InformationYes
