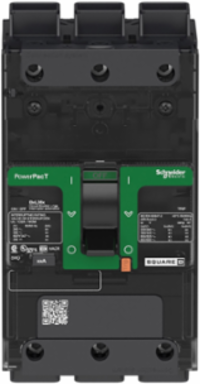

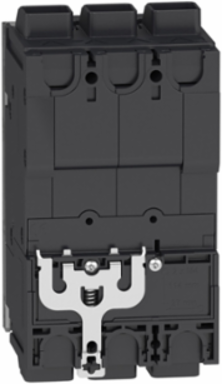

Schneider Electric BDL36020LU PowerPacT B Circuit Breaker 20A 3 Pole 600Y/347VAC 14kA
- MPN: BDL36020LU
- PPN: SCH-BDL36020LU
CAD
$2025.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Engineered for efficiency and safety in power distribution, the Schneider Electric PowerPacT B Circuit Breaker stands out with its robust construction and advanced protection features. This specific model operates at 20A with a three-pole configuration, making it ideal for 600Y/347VAC systems and capable of handling fault currents up to 14kA. Designed for reliability, it provides essential thermal and mechanical protection, safeguarding your electrical infrastructure from overloads and short circuits. Whether used in industrial or commercial applications, it ensures dependable operation and contributes to a safer electrical environment.
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Voltage
- 525 V AC 50/60 Hz
- Rated Insulation Voltage
- 800 V IEC 60947-2
- Trip Unit Technology
- Thermal-magnetic TM-D
- Control Type
- Toggle
- Electrical Durability
- 10000 cycles IEC 947-1 Annex K ed 5.2
- Ambient Air Temperature for Operation
- -25 to 70 °C
- AWG Gauge
- AWG 6 to AWG 2/0 fine stranded aluminum/copper; AWG 14 to AWG 3/0 rigid or stranded aluminum/copper
- Wire Stripping Length
- 20 mm
- Net Weight
- 1.074 kg
- IK Degree of Protection
- IK07 IEC 62262
- Ambient Air Temperature for Storage
- -50 to 85 °C
- Standards
- NEMA AB1, UL 489, IEC 60947-2, CSA C22.2 No 5, GB 14048.2, NMX J-266, EN/IEC 60947-5-1, EN/IEC 60947-2
- RoHS Compliance
- Compliant with Exemptions
- Mercury Free
- Yes
- Halogen Content Performance
- Halogen free product
Poles3P
Breaking Capacity25 kA at 220-240 V AC, 18 kA at 380-440 V AC, 14 kA at 500-525 V AC
Impulse Withstand Voltage8 kV IEC 60947-2
Continuous Current Rating80%
Mechanical Durability15000 cycles IEC 947-1 Annex K ed 5.2
Circuit Breaker ApplicationHACR rated
Connection Pitch27 mm
Tightening Torque5 N.m for AWG 14-4, 9 N.m for AWG 3-3/0

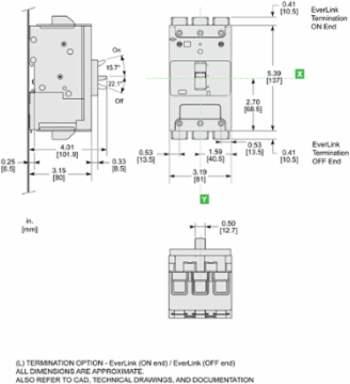

Dimensions (HxWxD)137 mm x 81 mm x 80 mm
IP Degree of ProtectionFront cover IP40 IEC 60529
Pollution Degree3 IEC 60947-1
Operating Altitude2000 m without derating, 5000 m with derating
Product CertificationsUL, IEC, CCC, EAC, CSA, NOM
Sustainable Offer StatusGreen Premium product
PVC FreeYes
ColorGray (RAL 7016)
