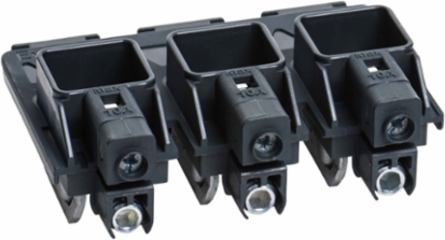

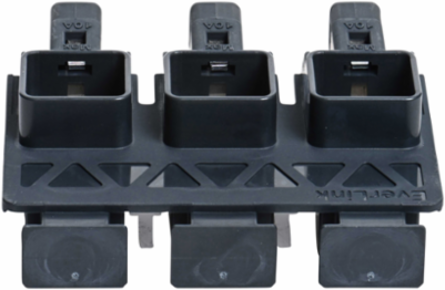

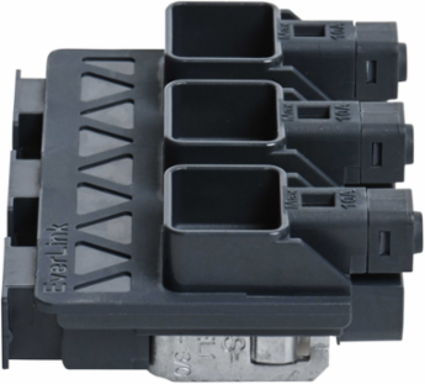

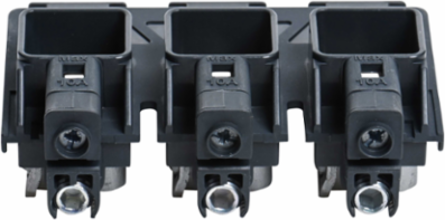

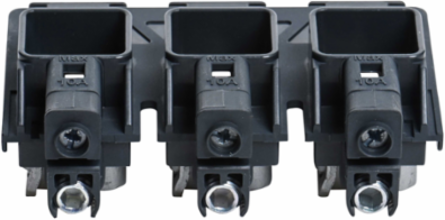

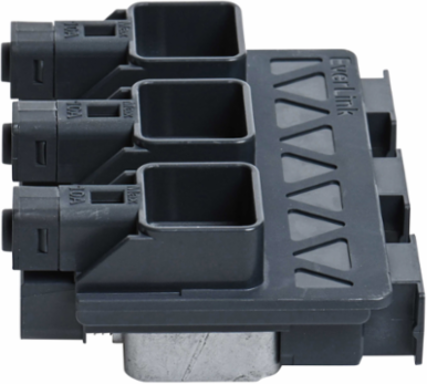

Schneider Electric LV426974 PowerPacT B Lug Kit Mechanical 15-125A 3 Pole, EverLink Terminal

MPN: LV426974
PPN: SCH-LV426974
UNSPSC: 39121409

$200.48

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PowerPacT B-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This accessory is an EverLink connector kit for three pole devices. EverLink lugs minimize loose wiring at installation sites caused by wire strand deformation, terminal temperature changes, and vibration or shocks. This field installable kit can be applied upstream or downstream. It includes control wire terminals which provide an auxiliary power supply to a control power transformer, convenience receptacle, or metering.

Features

EverLink lug with control wire terminal
Allows connection for electrical accessories
Compatible with B Frame circuit breakers
Accepts one 14 to 3/0 AWG copper wire per lug

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Complementary Attributes

Line Rated Current	15-125 A copper, 15-100 A aluminium

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Location Of Connection	downstream, upstream
Local Data Status	Publishable
Return Indicator	Y
Traceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Conductor Material	steel
Energy Efficiency Optimized	False
Product Availability	Stock - Normally stocked in distribution facility
Quantity Per Set	set of 1
Returnability	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Nbr. Of Units In Pkg.	1
Halogen Free Status	Halogen free product

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Connections Terminals	screw terminal - 1 2.5-95 mm² 14 AWG...3/0 AWG) - solid, screw terminal 2.5-95 mm² 14 AWG...3/0 AWG) - strandedscrew terminal 2.5-70 mm² 6 AWG...2/0 AWG) - fine stranded
Local Publishable Date	2026-09-05
Serviceability	No
Field Service Division	PPIBS
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1909
China Rohs In Scope	No
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Current Of Common	10 A 0.5-6 mm² 20 AWG...10 AWG), stranded or fine stranded10 A 1.5-6 mm² 20 AWG...10 AWG), rigid
Number Of Poles	3P
Product Or Component Type	mechanical lug
Range Of Product	PowerPact B
Sustainable Packaging	No
Accessory / Separate Part Type	connection kit
Customs Code	8536904000
Warranty In Months	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Halogene Performance	Halogen free product
Mercury Free	Yes
Halogen Content Performance	Halogen free product
Packaging Without Single Use Plastic	No

Take Back	No
Recycled Metal Content At Cr Level	0 %
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
