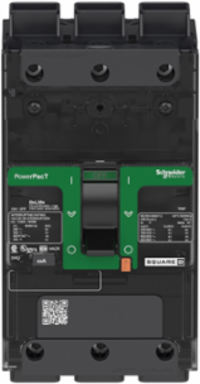

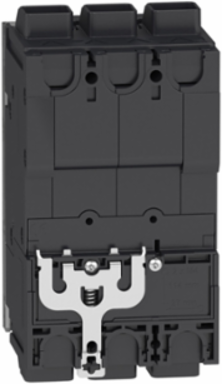

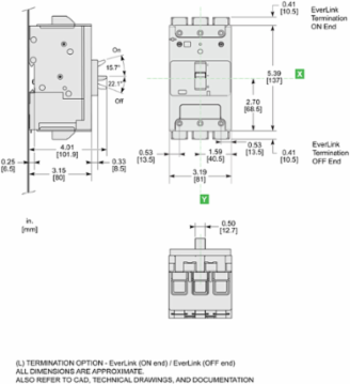

Schneider Electric BDL36035LU PowerPact B Circuit Breaker 35A 3 Pole 600Y/347VAC 14kA
- MPN: BDL36035LU
- PPN: SCH-BDL36035LU
CAD
$2025.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric BDL36035LU PowerPact B Circuit Breaker is engineered for optimal safety and performance in power distribution systems. With a capacity of 35 amps and a robust three-pole configuration, it is designed to operate at 600Y/347VAC, ensuring reliable protection against overloads and short circuits. This molded case circuit breaker provides a fault current interruption rating of 14kA, making it a dependable choice for various industrial applications. Built for long-lasting use, it helps maintain efficient operation while safeguarding electrical systems against potential threats.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth80 mm
Physical Attributes
- Color
- Gray RAL 7016)
Wire Stripping Length20 mm
Complementary Attributes
- Line Rated Current
- 35-35 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- Everlink lug, line, Everlink lug, load
- Certificate Agency
- UL, IEC, CCC, EAC, CSA, NOM
- Carbon Footprint Of The Distribution Phase [A4]
- 0, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.41326687994308847, 0.4 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 118 kg CO2 eq., 118.30526031538903
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Awg Gauge
- 6 AWG...2/0 AWG fine stranded aluminium/copper14 AWG...3/0 AWG rigid or stranded aluminium/copper
- Connection Pitch
- 27 mm
- Control Type
- toggle
- Device Short Name
- BD 035
- Energy Efficiency Optimized
- False
- Mechanical Durability
- 15000 cycles IEC 947-1 Annex K ed 5.2
- Network Frequency
- 50/60 Hz
- Number Of Slots
- 1 auxiliary switch OF plug-in)1 voltage release MN or MX plug-in)1 alarm switch SD plug-in)
- Product Name
- PowerPact B
- Protected Poles Description
- 3t
- Quantity Per Set
- set of 1
- Returnability
- No
- Suitability For Isolation
- yes IEC 60947-2
- Total Lifecycle Carbon Footprint
- 129 kg CO2 eq.
- Trip Unit Technology
- thermal-magneticTM-D,
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 245.9808
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 137 mm
- [Ue] Rated Operational Voltage
- 525 V AC 50/60 Hz UL 489
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536200020
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Tightening Torque5-5 N.m 2.5-16 mm² (14 AWG...4 AWG), 9-9 N.m 25-95 mm² (3 AWG...3/0 AWG)
[Ics] Rated Service Breaking Capacity25 kA 220...240 V AC 50/60 Hz IEC 60947-214 kA 500...525 V AC 50/60 Hz IEC 60947-218 kA 380...415 V AC 50/60 Hz IEC 60947-2, 18 kA 440 V AC 50/60 Hz IEC 60947-2
Carbon Footprint Of The End-of-life Phase [C1 To C4]2 kg CO2 eq., 2.4123785478171746
Carbon Footprint Of The Manufacturing Phase [A1 To A3]8 kg CO2 eq., 7.581152040133902
Local Data StatusPublishable
Return IndicatorN
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category4
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1909
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Circuit Breaker ApplicationHACR rated
Continuous Current Rating80 %
Device Applicationdistribution
Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Local Signallingpresence of auxiliary contacts flag green)
Mounting Modeclip-on 35 mm symmetrical DIN rail)by screws plate)
Number Of Poles3P
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typecircuit breaker
Quality LabelsCE
RangePowerPact
Software Versionv6.2.5-6
Sustainable PackagingYes
Trip Unit NameTM-D
Utilisation Categorycategory A
Pep CodeENVPEP2311047EN
Pep Verification Date2025-05-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %55
Width Nominal81 mm
[Ui] Rated Insulation Voltage800 V IEC 60947-2
Halogen-free StatusHalogen free product
Package Weight(Lbs)1.179 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -50-85 °C, -50-85 °C
- Halogene Performance
- Halogen free product
- Mercury Free
- Yes
- 9 Mm Pitches
- 9
- Eu Rohs Directive
- Compliant By Exemption
- Ip Degree Of Protection
- front cover IP40 IEC 60529
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-05-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-25-70 °C, -25-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint128.7120577832832
Environmental DisclosureENVPEP2311047EN
Halogen Content PerformanceHalogen free product
Operating Altitude6561.68 ft (2000 m) without derating5000 m with derating
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2311047EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- circuit breaker
