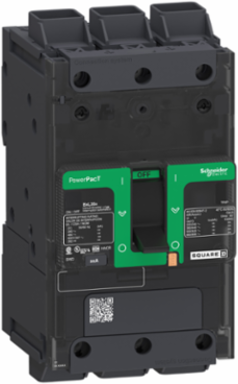

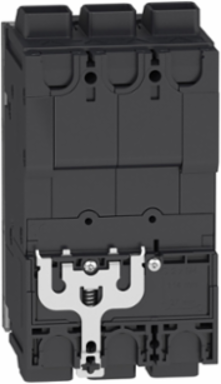

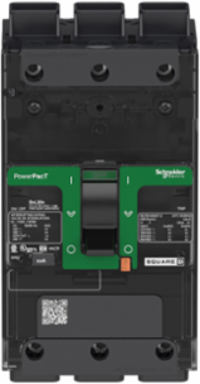

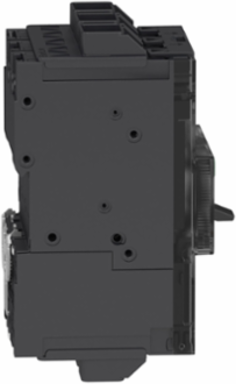

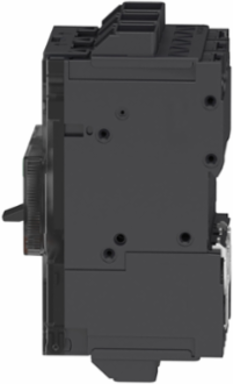

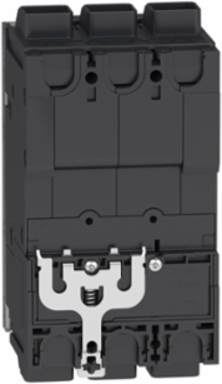

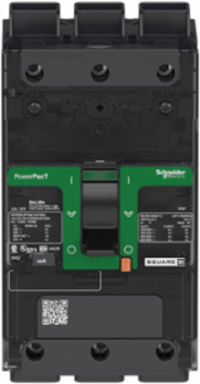

Schneider Electric BDL36040LU PowerPacT B Circuit Breaker, 40A, 3 Pole, 600Y/347VAC, 14kA
- MPN: BDL36040LU
- PPN: SCH-BDL36040LU
CAD
$2025.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric PowerPacT B Circuit Breaker is engineered for exceptional performance in power distribution applications. With a capacity of 40 Amps and a three-pole configuration, this breaker is capable of handling up to 600Y/347VAC, making it suitable for various electrical systems. Its robust design features a short-circuit interruption rating of 14kA, ensuring reliable protection against overloads and faults. Ideal for both industrial and commercial settings, this molded case circuit breaker combines efficiency with dependability, providing peace of mind for any electrical installation.
Documentation & Downloads
Specifications
Additional
- Amperage
- 40 A
- Voltage
- 600Y/347 VAC
- Rated Operational Voltage
- 525 V AC 50/60 Hz UL 489
- Continuous Current Rating
- 80 %
- Utilisation Category
- Category A
- Electrical Durability
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Operating Temperature Range
- -25 to 70 °C (-13 to 158 °F)
- Trip Unit Name
- TM-D
- AWG Gauge
- AWG 6...AWG 2/0 fine stranded aluminum/copper, AWG 14...AWG 3/0 rigid or stranded aluminum/copper
- Power Wire Stripping Length
- 20 mm (0.79 in)

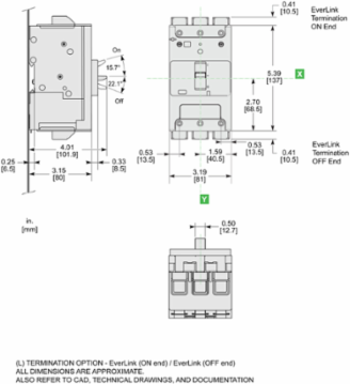

- Width
- 81 mm (3.19 in)
- Net Weight
- 1.074 kg (2.37 lb)
- Protected Poles Description
- 3T
- IP Degree of Protection
- Front cover IP40 IEC 60529
- Pollution Degree
- 3 IEC 60947-1
- Standards
- NEMA AB1, NMX J-266, UL 489, EN/IEC 60947-5-1, EN/IEC 60947-2, GB 14048.2, CSA C22.2 No 5
- Pollution Degree
- 3 IEC 60947-1
- Mercury Free
- Yes
- Halogen Content Performance
- Halogen free
- Range
- PowerPact
- Suitability For Isolation
- Yes IEC 60947-2
- Control Type
- Toggle
Number of Poles3P
Breaking Capacity25 kA 208Y/120 V AC 50/60 Hz UL 489, 18 kA 240 V AC 50/60 Hz UL 489, 25 kA 480/277 V AC 50/60 Hz UL 489, 14 kA 480 V AC UL 489, 18 kA 600Y/347 V AC UL 489, 14 kA 250 V DC UL 489
Rated Insulation Voltage800 V IEC 60947-2
Trip Unit TechnologyThermal-magnetic TM-D
Mechanical Durability15000 cycles IEC 947-1 Annex K ed 5.2
Circuit Breaker ApplicationHACR rated
Operating Altitude2000 m without derating, 5000 m with derating (6561.68 ft)
Connection Pitch27 mm (1.06 in)
Tightening Torque5 N.m for AWG 14...AWG 4, 9 N.m for AWG 3...AWG 3/0 (44.25 - 79.66 Lbf.In)
Height137 mm (5.39 in)
Depth80 mm (3.15 in)
Mounting ModeClip-on 35 mm symmetrical DIN rail or by screws plate
Electrical ConnectionEverlink lug, line and load
IK Degree of ProtectionIK07 IEC 62262
Storage Temperature Range-50 to 85 °C (-58 to 185 °F)
Product CertificationsUL, IEC, CCC, EAC, CSA, NOM
Sustainable Offer StatusGreen Premium product
PVC FreeYes
RoHS ComplianceCompliant with Exemptions
Device ApplicationDistribution
Quality LabelsCE
Local SignallingPresence of auxiliary contacts flag green
