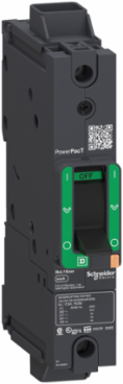

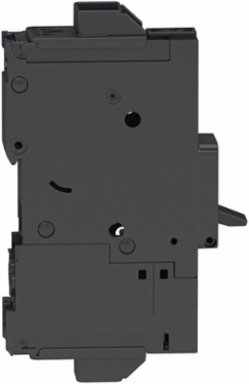

Schneider Electric BGL16050 PowerPact B Circuit Breaker 50A 1 Pole 600Y/347VAC 18kA
Schneider Electric BGL16050 PowerPact B Circuit Breaker 50A 1 Pole 600Y/347VAC 18kA
- MPN: BGL16050
- PPN: SCH-BGL16050
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$862.75/ EA
Description
Schneider Electric’s PowerPact B Circuit Breaker is engineered for robust power distribution, incorporating a 50A rated capacity across a single pole for systems operating at 600Y/347VAC. With a remarkable interrupting capacity of 18kA, this breaker is designed to protect electrical circuits with efficiency and reliability. Its compact molded case design not only fits seamlessly into various applications but also ensures durability and optimal performance, making it a vital component for modern electrical systems.
Specifications
- Rated Current
- 50 A
- Breaking Capacity
- 65 kA 208Y/120 V AC, 65 kA 240 V AC, 35 kA 480Y/277 V AC, 18 kA 600Y/347 V AC, 20 kA 125 V DC
- Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Electrical Durability
- 10000 cycles IEC 947-1 Annex K ed 5.2 In
- Amperage
- 50 A
- Circuit Breaker Application
- HACR Rated
- Connection
- Everlink lug, line and load
- Power Wire Stripping Length
- 20 mm
- Weight
- 0.51 kg (1.12 lb)
- IK Degree of Protection
- IK07 IEC 62262
- Ambient Air Temperature for Operation
- -25 to 70 °C (-13 to 158 °F)
- Operating Altitude
- 2000 m without derating, 5000 m with derating
- Standards
- NMX J-266, EN/IEC 60947-2, EN/IEC 60947-5-1, CSA C22.2 No 5, NEMA AB1, GB 14048.2, UL 489
- Compliance
- CE, RoHS Compliant, Mercury Free, PVC Free, Halogen Free
Rated Operational Voltage240 V AC 50/60 Hz UL 489
Rated Insulation Voltage800 V IEC 60947-2
Continuous Current Rating80 %
Mechanical Durability15000 cycles IEC 947-1 Annex F ed 5.2
Number of Poles1P
Mounting ModeClip-on 35 mm symmetrical DIN rail, By screws plate
Tightening Torque5 N.m (AWG 14...AWG 4), 9 N.m (AWG 3...AWG 3/0)

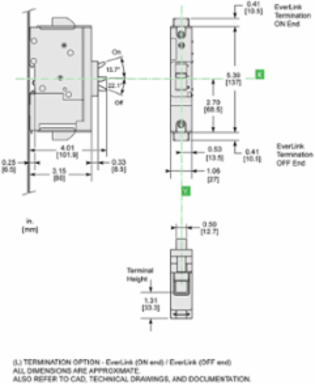

Dimensions5.39 in x 1.06 in x 3.15 in (137 mm x 27 mm x 80 mm)
IP Degree of ProtectionIP40 IEC 60529
Pollution Degree3 IEC 60947-1
Ambient Air Temperature for Storage-50 to 85 °C (-58 to 185 °F)
Trip Unit TechnologyThermal-magnetic TM-D
Product CertificationsUL, IEC, CCC, EAC, CSA, NOM
ColorGray RAL 7016
