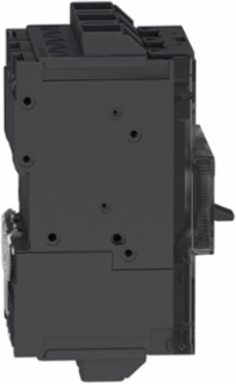

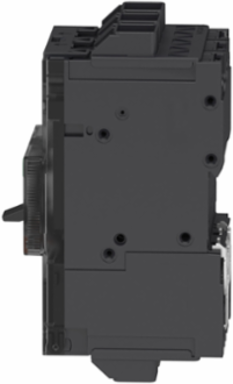

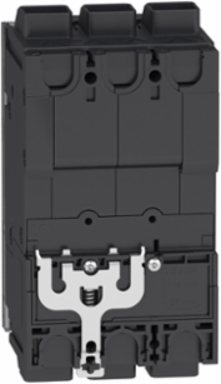

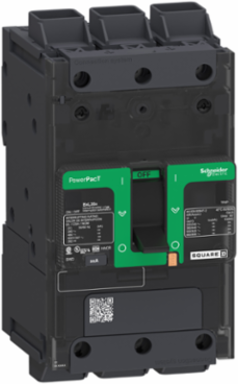

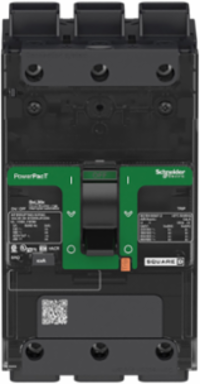

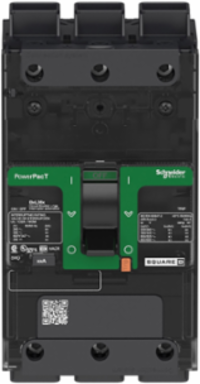

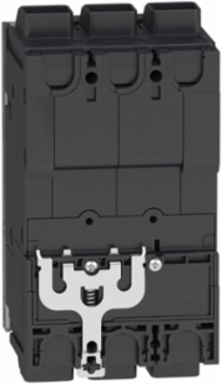

Schneider Electric BDL36050LU PowerPact B Circuit Breaker 50A 3 Pole 600Y/347VAC 14kA
- MPN: BDL36050LU
- PPN: SCH-BDL36050LU
CAD
$2025.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This circuit breaker from Schneider Electric is engineered to provide reliable power distribution and protection for your electrical systems. With a 50A rating and a robust 3-pole configuration, it is designed for use in 600Y/347VAC applications and offers an impressive short-circuit protection of 14kA. Ideal for both commercial and industrial environments, the Molded Case design ensures durability and longevity, making it a critical component for maintaining safety and efficiency in electrical circuits.
Documentation & Downloads
Specifications
Additional
- Amperage
- 50 A
- Rated Operational Voltage
- 525 V AC 50/60 Hz UL 489
- Continuous Current Rating
- 80 %
- Mechanical Durability
- 15000 cycles IEC 947-1 Annex K ed 5.2
- Number of Poles
- 3P
- Circuit Breaker Application
- HACR rated
- Pollution Degree
- 3 IEC 60947-1
- Ambient Air Temperature for Storage
- -50 to 85 °C (-58 to 185 °F)

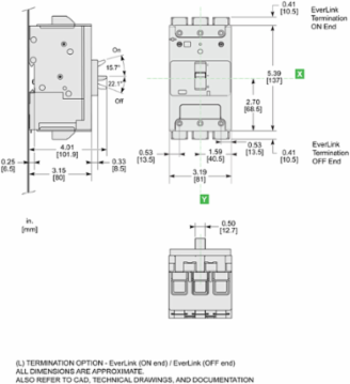

- Dimensions (HxWxD)
- 137 mm x 81 mm x 80 mm
- Connection Pitch
- 27 mm
- Power Wire Stripping Length
- 20 mm
- Control Type
- Toggle
- IK Degree of Protection
- IK07 IEC 62262
- Mercury Free
- Yes
- Halogen Content
- Halogen free product
- Standards
- NMX J-266, GB 14048.2, CSA C22.2 No 5, EN/IEC 60947-5-1, UL 489, EN/IEC 60947-2, NEMA AB1
- Range
- PowerPact
- Device Application
- Distribution
- Number of Slots
- 1 auxiliary switch OF plug-in, 1 voltage release MN or MX plug-in, 1 alarm switch SD plug-in
- Local Signalling
- Presence of auxiliary contacts flag green
- Product Name
- PowerPact B
- Reach Regulation
- Contains SVHC above threshold
- Sustainable Offer Status
- Green Premium product
Breaking Capacity25 kA 208Y/120 V AC, 18 kA 240 V AC, 25 kA 480/277 V AC, 14 kA 480 V AC, 18 kA 600Y/347 V AC, 14 kA 250 V DC
Rated Insulation Voltage800 V IEC 60947-2
Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Voltage600Y/347 VAC
Trip Unit TechnologyThermal-magnetic TM-D
Operating Altitude2000 m without derating, 5000 m with derating
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Tightening Torque5-5 N.m (AWG 14 to AWG 4), 9-9 N.m (AWG 3 to AWG 3/0)
Net Weight1.074 kg
AWG GaugeAWG 6 to AWG 2/0 fine stranded aluminum/copper, AWG 14 to AWG 3/0 rigid or stranded aluminum/copper
Mounting Modeclip-on 35 mm symmetrical DIN rail or screws plate
IP Degree of ProtectionFront cover IP40 IEC 60529
ComplianceUL, IEC, CCC, EAC, CSA, NOM, CE, RoHS Compliant
PVC FreeYes
Product CertificationsUL, IEC, CCC, EAC, CSA, NOM, CE
WeeeEU market disposal regulations apply
Suitability For IsolationYes IEC 60947-2
Device Short NameBD 050
Electrical ConnectionEverlink lug, line and load
ColorGray (RAL 7016)
Environmental DisclosureENVPEP1610005EN
Rohs Exemption InformationYes
