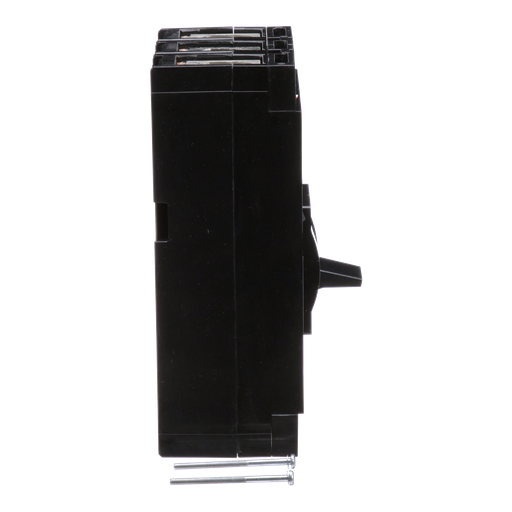

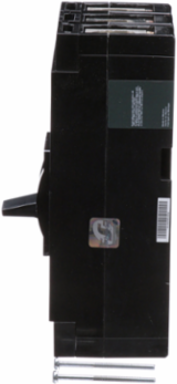

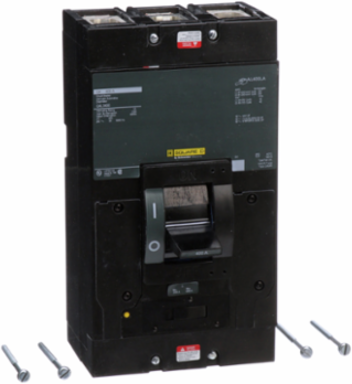

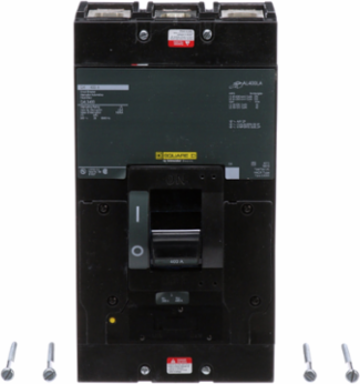

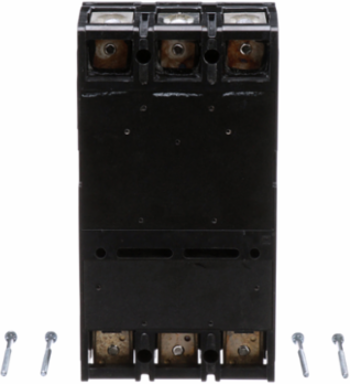

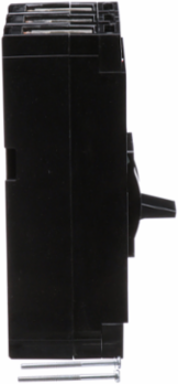

Square D Q4L3400 Circuit breaker, Q4, 400A, 3 pole, 240VAC, 25kA, lugs, thermal magnetic, unit mount
Square D Q4L3400 Circuit breaker, Q4, 400A, 3 pole, 240VAC, 25kA, lugs, thermal magnetic, unit mount
- MPN: Q4L3400
- UPC: 785901649281
- PPN: SCH-Q4L3400
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$4837.75/ EA
Description
Square D Q4 molded case circuit breakers provide basic thermal magnetic protection. Their primary functions are to provide a means to manually open a circuit and automatically open a circuit under overload or short circuit conditions. Q4 circuit breaker could be used for muliple applications such as construction, in commercial and industrail buildings, for control equipment panels for OEM commercial and even in mines. Molded case Q4 breakers have an yellow push-to-trip button provides a means to mechanically trip the circuit breaker, allowes maintenance checks on the breaker and othe associated equipment This 2 poles unit mount circuit breaker is equiped with thermal magnetic trip unit with rated current of 300A and voltage of 240 VAC. Breaker has an interrapting rating as 25kA at 240VAC and is provided with UL listed mechanical lugs or optional lugs could be possibly used. All Q4 molded case circuit breakers have trip indication as operating handle being in central position when the breaker is tripped. Q4 breakers are UL 489, CSA, IEC certified.
Specifications
Complementary
- Terminal Identifier
- AL400LA
- Mounting Mode
- unit mount
- Breaking Capacity Code
- Q4
- Poles Description
- 3P
- Width
- 6 in
- Depth
- 5.84 in
Height11 in
Tightening Torque42-42 N.m 50-300 mm² AWG 1...600 kcmil) || 42-42 N.m 50-120 mm² AWG 1...250 kcmil)
Magnetic Tripping Current4000-4000 A
[In] Rated Current400 A
Electrical Connectionlugs, load || lugs, line
Magnetic Hold Current2000 A
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1410004EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Halogen Content PerformanceHalogen free plastic parts product
Specifications
- Trip Unit Technology
- thermal-magnetic
Product Or Component Typecircuit breaker
Environment
- Product Certifications
- IEC || UL listed || CSA
