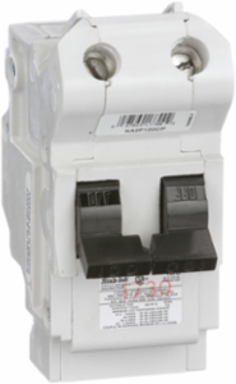

Federal Pioneer NA2P100 Stab-Lok Circuit Breaker 100A 2 Pole 120/240V AC 10kA Plug-In Mount
- MPN: NA2P100
- UPC: 047569369803
- PPN: SCH-NA2P100
CAD
$254.31
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Stab-Lok circuit breakers are one, two, and three pole thermal magnetic circuit breakers that provide arc fault circuit interrupters for Federal Pioneer panels. They have easy to read color coded handles to differentiate ampere ratings. This breaker is a two pole 100A, 120/240VAC moulded case breaker with plug in mounting. This circuit breaker meets CSA standards.
Features
- Specifically engineered with the iconic Stab-lok "thick" plug-on design, this 2-pole breaker ensures a precise, high-tension mechanical connection to the bus bar. Using a genuine Schneider Electric replacement eliminates the arcing and overheating risks often associated with loose-fitting aftermarket clones, ensuring your legacy panel remains safe and fully operational.
- Rated for a substantial 100A at 120/240V, this high-amperage breaker is the ideal solution for protecting large residential sub-panels, electric furnaces, or high-performance EV charging stations. It provides a robust defense against massive overloads, automatically cutting power to prevent wires from melting or causing structural fires during a significant fault.
- Equipped with an internal common trip bar, both poles are mechanically linked to ensure that if one circuit detects a fault, both disconnect simultaneously. This prevents "half-power" scenarios that can burn out expensive 240V motors in heat pumps or dryers, providing comprehensive protection for your most valuable home systems.
- This NA-type breaker is fully CSA (Canadian Standards Association) certified, specifically designed to meet the unique regulatory requirements of the Canadian electrical market. Installing a code-compliant, factory-tested Schneider breaker ensures your electrical system passes provincial inspections and maintains the integrity of your property s fire and liability insurance coverage.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Stab-lok
- [In] Rated Current
- 100 A
- Breaking Capacity
- 10 kA
Poles Description2P
Product Or Component Typeminiature circuit-breaker
[Ue] Rated Operational Voltage120/240 V AC
Complementary
- Mounting Mode
- plug-in
- Awg Gauge
- AWG 4...AWG 2/0 copper
Electrical Connectionscrew connector
Environment
- Product Certifications
- CSA
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectiveCompliant with Exemptions
