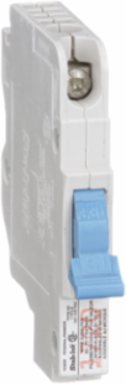

Schneider Electric NC040 Stab-Lok Circuit Breaker 40A 1 Pole 120V AC 10kA Plug-In Mount
- MPN: NC040
- UPC: 785901389071
- PPN: SCH-NC040
CAD
$47.86
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Stab-Lok circuit breakers are one, two, and three pole thermal magnetic circuit breakers that provide arc fault circuit interrupters for Federal Pioneer panels. They have easy to read color coded handles to differentiate ampere ratings. This breaker is a one pole 40A, 120VAC moulded case breaker with plug in mounting. This circuit breaker meets CSA standards.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Stab-lok |
|---|---|
| [In] Rated Current | 40 A |
| Breaking Capacity | 10 kA |
| Poles Description | 1P |
|---|---|
| Product Or Component Type | miniature circuit-breaker |
| [Ue] Rated Operational Voltage | 120 V AC |
Complementary
| Mounting Mode | plug-in |
|---|---|
| Awg Gauge | AWG 14...AWG 10 copper |
| Electrical Connection | screw connector |
|---|
Offer Sustainability
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information |
|---|---|
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
|---|---|
| Eu Rohs Directive | Compliant with Exemptions |
Environment
| Product Certifications | CSA |
|---|
