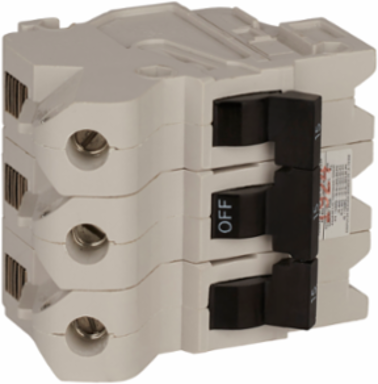

Federal Pioneer NB3P60 Stab-Lok Circuit Breaker 60A 3 Pole 240VAC Bolt-On 10kA
- MPN: NB3P60
- UPC: 047569384967
- PPN: SCH-NB3P60
CAD
$655.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Stab-Lok circuit breakers are one, two, and three pole thermal magnetic circuit breakers that provide arc fault circuit interrupters for Federal Pioneer panels. They have easy to read color coded handles to differentiate ampere ratings. This breaker is a three pole 60A, 240VAC moulded case breaker with bolt on mounting. This circuit breaker meets CSA standards.
Features
- Engineered specifically for vintage and legacy Federal Pioneer (FPE) electrical enclosures, this genuine Schneider Electric replacement component delivers an exact mechanical match. It provides home inspectors, residential service electricians, and maintenance teams with a code-compliant solution that avoids the safety risks and legal liabilities associated with forcing generic, unapproved hardware into a dedicated Stab-Lok® panelboard.
- Delivering a substantial 60-amp threshold across three interconnected poles, this molded-case circuit breaker provides multi-phase protection for demanding electrical loads. It simultaneously opens all three hot lines during a fault condition, protecting large commercial air conditioning compressors, industrial pumps, sub-panels, and heavy workshop machinery from destructive single-phasing failures and catastrophic electrical fires.
- Designed with a rugged, mechanical bolt-on connection rather than a simple friction-fit plug, the NB-type configuration fastens securely directly to the panelboard's copper bus bars. This tight physical coupling minimizes contact resistance, mitigates localized heat generation, and ensures the breaker will not wiggle free or arc when installed adjacent to vibrating machinery or industrial manufacturing lines.
- Boasting a 10,000-amp short-circuit breaking capacity at 120/240V AC, this thermal-magnetic safety device is calibrated at 40°C to rapidly isolate high-energy overcurrent faults before they travel upstream. This protective threshold limits thermal stress on structural wiring, prevents breaker explosive failures, and maintains full code compliance with standard North American electrical inspector safety metrics.
- Outfitted with robust, industrial-grade mechanical screw connectors, the breaker safely accepts a broad range of wire sizes from 14 AWG up to thick 1/0 AWG conductors. This highly accommodating terminal profile allows field technicians to terminate either copper or aluminum branch circuit cables effortlessly without replacing the mechanical lugs, reducing inventory costs and saving vital field labor time.
Documentation & Downloads
Specifications
Additional
- Amperage
- 60 A
- Poles
- 3P
- Mounting Mode
- Bolt-on
- AWG Gauge
- AWG 14 to AWG 1/0 aluminum/copper
- Product Type
- Miniature circuit-breaker
- Range of Product
- Stab-lok
Voltage120/240 V AC
Breaking Capacity10 kA
Electrical ConnectionScrew connector
MaterialMercury Free
ComplianceCSA Certified, RoHS Compliant with Exemptions, China RoHS Scope Exempted, REACH SVHC Present
