Hubbell Wiring Device-Kellems

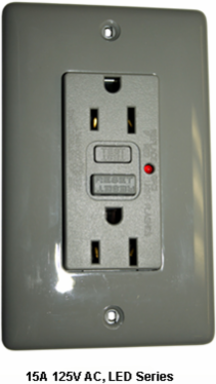

Hubbell Wiring Device-Kellems GF15RLA Circuit Guard LED GFCI Receptacle

Circuit Guard LED GFCI Receptacle
  • MPN: GF15RLA
  • UPC: 883778379055
  • PPN: HBL-GF15RLA

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$18.71/ EA

Description

15A 125V, 2P 3W, Flush Thermoplastic Face, Back & Side Wired, Matching Wall Plate Included, Red

Specifications

Specifications

Amperage Range
15A/20A, 20 Amps Feed Thru
Voltage Range
120V AC +10% -15%
GFCI Product Type
receptacles
Operating Temp
Deg F -30 to 150 (Deg C -30 to 66)
Receptacle Grade
Commercial
Color
red
Amperage
15A
Wiring Style
Internal Backwire
Packaging
Single
Max Interrupting Capacity
10,000 Amps
Receptacle VersionLED Indicator Series Receptacle
Terminal Accommodations#14 -10 AWG stranded or solid copper conductors only.
Trip Time0.025 seconds
Note:GFCI Receptacles should not be used in critical care patient areas or for electrical life support equipment.
Trip Level4-6 mA
Max Humidity0.95
Voltage125V AC
Frequency60Hz
Weight in LBs0.3
Codes and StandardsMeets UL 943 Class A GFCIs and UL 498 for Receptacles. Complies to NEC, CEC & OSHA. UL File E-41978, CSA File LR-24886
