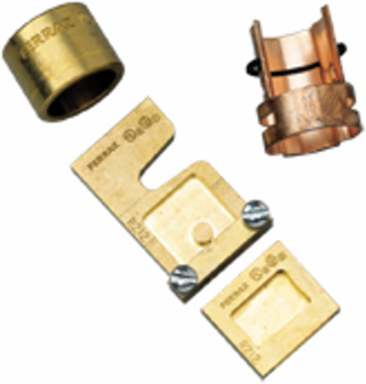

Mersen 412 Class H & K Fuse Reducer 600 VAC, 50 kA SCCR, Lead Free
- MPN: 412
- UPC: 782001752286
- PPN: FER-412
CAD
$179.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Mersen fuse reducers allow the use of lower rated fuses in existing equipment having clips with higher ampere ratings. The use of closer rated time-delay fuses can improve circuit protection. For example, renewable or one-time fuses feeding a motor can be replaced with fuses sized closer to the motor nameplate current. Non-rejection reducers will allow Class H, K or R fuses to fit Class H or K clips. Rejection-type reducers will allow only Class R fuses to fit Class R clips or only Class J fuses to fit Class J clips. Class J fuse reducers are not for bolt on applications.
Specifications
Product Details
- Lead Free
- Consult Technical Services
- CE conformity
- Consult Technical Services
- SCCR
- 50 kA
- Standards
- 250V and 600V Class H, K, and R - UL Listed Guide No. IZZR, CSA Certified. 600V Class J - UL Listed Guide No. IZZR, CSA Certified 30-600A
- ROHS Compliant
- Consult Technical Services
ClassH & K
AC Voltage600 VAC
DC Voltage600 VDC
UL CertificationE105670 IZZR.E105670
CSA Certification6225-01 207417
