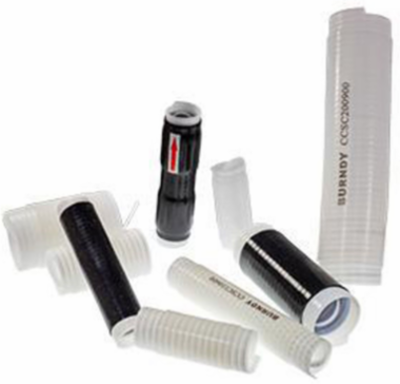

Burndy CCSC146900 Clear Cold Shrink Silicone Rubber Insulator 0.63 Inch Diameter, 9.02 Inch Length, 2000 V
- MPN: CCSC146900
- UPC: 621945524231
- PPN: BUR-50090777
- UNSPSC: 39121728
CAD
$43.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Clear Cold Shrink, Specially formulated silicone rubber offering excellent insulation and moisture resistant sealing for in-line cable connector systems. The rubber sleeves are factory expanded over a removeable, plastic ripcord housing. Installs quickly and easily with no heat gun or other installation tools. Passes TELCORDIA GR-347-CORE Abrasion and Cut Test up to 750 kcmil. Operating temperature range: -40°C to +105°C.
Features
- Length of tube is consistent before and after application
- Easy, safe installation
- Suitable for wide range of cable sizes
- UV resistance, thermal stability
- No special tools or training required
- Forms a moisture resistant seal
- Indoor and outdoor applications
- Rip and Grip Installation does not require heat gun or any installation tools
- Passes TELCORDIA GR-347-CORE Abrasion and Cut Test up to 750 kcmil
- cUL insulating cover for wire connectors tested in accordance to UL 486A/B
- Passes UL 746C Glow Wire Test
- Ripcord is recyclable
Specifications
Additional
| Voltage Rating | 2000 V |
|---|---|
| Diameter | 0.63 in |
| Material | Silicone Rubber |
| Operating Temperature Range | -40 C to +105 C |
| Country of Origin | CN |
| Length | 9.02 in |
|---|---|
| Diameter Max Before Shrink | 1.46 in |
| Color | Clear |
| Compliance | cUL, UL 746C, TELCORDIA GR-347-CORE |
