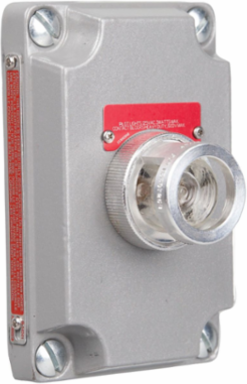

Killark XCS-0B24-RL XCS Series - Aluminum 120V Pilot Light Cover With Device - Red Lens With Nameplate To Be Specified
Killark XCS-0B24-RL XCS Series - Aluminum 120V Pilot Light Cover With Device - Red Lens With Nameplate To Be Specified
- MPN: XCS-0B24-RL
- UPC: 783936890128
- PPN: HBL-XCS-0B24-RL
- UNSPSC: 39122216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$502.69/ EA
Description
XCS Series - Aluminum 120V Pilot Light Cover With Device - Red Lens With Nameplate To Be Specified.
Features
- Copper free cast aluminum alloy.
- Ground flange joint between bolted cover and box provide required flame path.
- Push button, selector switches and pilot light operator bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Specifications
Specifications
- Back Box Type
- SWB
- Depth
- 2-3/32
- Width
- 5.875 in
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Length
- 7.5 in
- Amperage Rating
- 0.25 A
- Color
- Red
- Special Features
- Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
- Frequency Rating
- 50/60 Hz
- Description - Invoice
- CLI 120V RED PL CV (CS)
- Harmonization Code
- 8531800090
- Lead Time
- 15 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D250
- Gross Weight with Packaging
- 1.2
- Material
- Copper-free aluminum
- Base Unit of Measure
- EA
- Master Pack Description
- Each
Country of OriginUS
Dimensions7.5 in x 5.875 in x 4.25 in
Each - Width5.875 in
Height4.25 in
ActuatorPilot Light
ApplicationHazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where simil
Size7.5 in x 5.875 in x 4.25 in
TypeAluminum Cover With Pilot Light
Class CodeD25
Freight Class Code06168002
Image Actual Or RepresentativeA
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11714
UL File NumberE53360
SeriesXCS
Carton - SCC-14 Next Lower Level Sub Pack00783936890128
Certifications
- EU RoHS Indicator
- Contact Manufacturer
