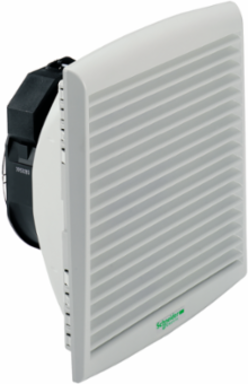

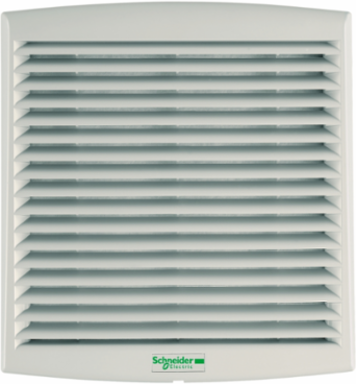

Schneider Electric NSYCVF165M48DPF ClimaSys forced vent. IP54, 193m3/h, 48V DC, with outlet grille and filter G2

ClimaSys forced vent. IP54, 193m3/h, 48V DC, with outlet grille and filter G2
  • MPN: NSYCVF165M48DPF
  • PPN: SCH-NSYCVF165M48DPF

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$587.02/ EA

Description

ClimaSys forced vent. IP54, 193m3/h, 48V DC, with outlet grille and filter G2

Specifications

Complementary

Connections - Terminals
cable
Cut-Out Dimensions
223 x 223 mm
Width
external 248 mm
Power Range
8.7 W
Ip Degree Of Protection
IP54
Colour
outlet grille grey RAL 7035)
Device Composition
1 axial motor || 2 protective grille on the front and rear surfaces || 1 filter front of axial motor || 1 outlet grille front || 1 cut-out template || 1 power cord
Bearing Type
ball
Depth
external 104 mm
Ambient Air Temperature For Operation-10-70 °C
Ambient Air Temperature For Storage-40-70 °C
Heightexternal 268 mm
Materialoutlet grille injected thermoplastic (ASA PC)
Condition Of Usesurrounding environment must be relatively clean || outside temperature must be 5 °C lower than inside temperature || overfrequent filter replacement should be avoided || filter must be cleaned and replaced regularly || flow rates depends on the work point, see ProClima software
Maximum Pressure50 Pa flow rate 0 m³/h
[In] Rated Current0.18-0.18 A
Net Weight0.81 kg
Noise Level50-51 dB

Specifications

Input Voltage
48 V DC
Air Flow
free flow rate with standard filter: 193 m3/h
Product Or Component Type
fan
Range
ClimaSys
[Us] Rated Supply Voltage25...55.2 V
Type Of Ventilation Filterstandard
Product NameClimaSys CV

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP110717EN
Eu Rohs Directive
Compliant with Exemptions
Circularity ProfileENVEOLI1107017EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold

Contractual warranty

Warranty
18 months
