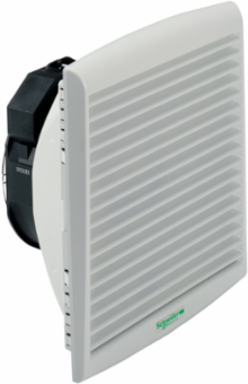

Schneider Electric NSYCVF300M48DPF ClimaSys forced vent. IP54, 300m3/h, 48V DC, with outlet grille and filter G2
Schneider Electric NSYCVF300M48DPF ClimaSys forced vent. IP54, 300m3/h, 48V DC, with outlet grille and filter G2
- MPN: NSYCVF300M48DPF
- PPN: SCH-NSYCVF300M48DPF
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$660.54/ EA
Description
ClimaSys forced vent. IP54, 300m3/h, 48V DC, with outlet grille and filter G2
Specifications
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110717EN
- Eu Rohs Directive
- Compliant with Exemptions
Circularity ProfileENVEOLI1107017EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- Connections - Terminals
- cable
- Cut-Out Dimensions
- 223 x 223 mm
- Width
- external 248 mm
- Power Range
- 11 W
- Ip Degree Of Protection
- IP54
- Colour
- outlet grille grey RAL 7035)
- Device Composition
- 1 axial motor || 2 protective grille on the front and rear surfaces || 1 filter front of axial motor || 1 outlet grille front || 1 cut-out template || 1 power cord
- Bearing Type
- ball
- Depth
- external 103.4 mm
Ambient Air Temperature For Operation-10-70 °C
Ambient Air Temperature For Storage-40-70 °C
Heightexternal 268 mm
Materialoutlet grille injected thermoplastic (ASA PC)
Condition Of Usesurrounding environment must be relatively clean || filter must be cleaned and replaced regularly || flow rates depends on the work point, see ProClima software || outside temperature must be 5 °C lower than inside temperature || overfrequent filter replacement should be avoided
Maximum Pressure158 Pa flow rate 0 m³/h
[In] Rated Current0.24-0.24 A
Net Weight1.1 kg
Noise Level55-56 dB
Contractual warranty
- Warranty
- 18 months
Specifications
- Input Voltage
- 48 V DC
- Air Flow
- free flow rate with standard filter: 262 m3/h
- Product Or Component Type
- fan
- Range
- ClimaSys
[Us] Rated Supply Voltage25...60 V
Type Of Ventilation Filterstandard
Product NameClimaSys CV
