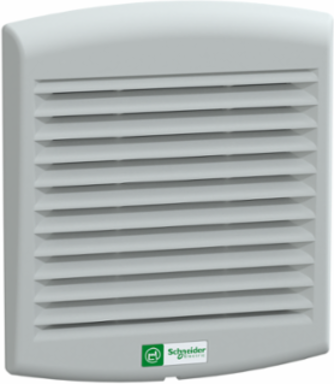

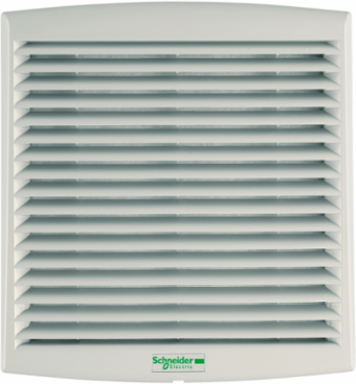

Schneider Electric NSYCVF85M24DPF ClimaSys Ventilator 80 m3/h 24V DC IP54 Grey RAL 7035
- MPN: NSYCVF85M24DPF
- PPN: SCH-NSYCVF85M24DPF
CAD
$366.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
ClimaSys CV Axial motor ventilator. 24V DC 50Hz or 60Hz. 7.6W 50 Hz. Free flow rate with standard filter of 80 m3/h at 50 Hz. 170 x 150 x 62 mm. Cut-out dimensions of 125 x 125 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by cable. 2 protective grille on the front and rear surfaces. Protection IP54.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, France, United States
Physical Attributes
- Color
- outlet grille Gray RAL 7035)
Complementary Attributes
- Line Rated Current
- 0.3-0.3 A
Maximum Pressure50 Pa flow rate 0 m³/h
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Condition Of Use
- overfrequent filter replacement should be avoided, outside temperature must be 5 °C lower than inside temperature, surrounding environment must be relatively clean, filter must be cleaned and replaced regularly, flow rates depends on the work point, see ProClima software
- Carbon Footprint Of The Distribution Phase [A4]
- 1.0701793076183606, 1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.06001226796046052, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 482 kg CO2 eq., 481.5455295747764
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1107017EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Bearing Type
- ball
- Material
- outlet grille injected thermoplastic (ASA PC)
- Power Range
- 7.6 W
- Product Name
- ClimaSys CV
- Range
- ClimaSys
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 487 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- "Transfer 1 m3 of air per hour for the ventilation and air treatment and smoke exhaust and filtration of a building/Confined space over the reference lifetime of 17 years. "
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 1191.36
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- external: 170 mm
- Certificate Agency
- CSA
- Connections - Terminals
- cable
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- Yes
- Warranty (In Months)
- 18
- Customs Code
- 8414596590
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Device Composition1 axial motor, 2 protective grille on the front and rear surfaces1 filter front of axial motor1 outlet grille front, 1 cut-out template, 1 power cord
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.8 kg CO2 eq., 0.8054098219138587
Carbon Footprint Of The Manufacturing Phase [A1 To A3]4 kg CO2 eq., 3.506847950936348
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Noise Level46-49 dB
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typefan
ReturnabilityYes
Sustainable PackagingNo
Type Of Ventilation Filterstandard
Pep CodeENVPEP110717EN
Pep Verification Date2025-08-05
Psr VersionPSR-0008-ed3-EN-2023 10 19
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y17
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential In %64
Width Nominalexternal: 150 mm
[Us] Rated Supply Voltage10...27.6 V
Cut-out Dimensions125 x 125 mm
Package Weight(Lbs)540.000 g
Take-backNo
Other Technical GuideCPTG001_EN
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-70 °C, -10-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Silicon Free
- Yes
- Air Flow
- free flow rate with standard filter: 80 m3/h
- Environmental Disclosure
- ENVPEP110717EN
- Ip Degree Of Protection
- IP54
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP110717EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint486.9879789232055
Circularity ProfileENVEOLI1107017EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-08-05
Psr VersionPSR-0008-ed3-EN-2023 10 19
General Attributes
- Product Or Component Type
- fan
ETIM
- ETIM 8
- EC000320
ETIM 9EC000320
Surge Protection And Filtering Attributes
- Type Of Ventilation Filter
- standard
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Voltage
- 24 V DC
