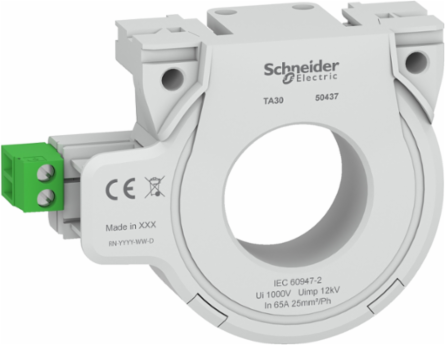

Schneider Electric 50437 Closed Toroid A Type 30mm Inner Diameter 65A Current Transformer
- MPN: 50437
- PPN: SCH-50437
CAD
$804.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This toroid is dedicated to Vigilohm Insulation Fault locators, and to VigiPacT type A residual current protection and monitoring relays. It allows the monitoring of the injected component from Vigilohm Insulation Monitor, and the measurement of a current rating up to 65A for VigiPacT monitoring and protection relays. The transformer ratio is 1/1000. The inner diameter of the toroid is 30 millimeters and the weight is 0.120kg. The cables must be centered within the toroid and the diameter represented by all these cables should not exceed 15 millimeters. The maximum cross section per phase (R, S, T, N) is 25mm² for a copper conductor.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States

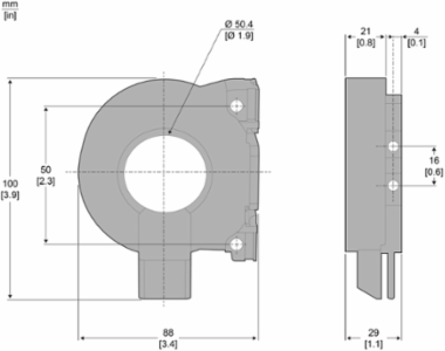

Depth29 mm
Important Information Attributes
- Persona Type Ids
- LC, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Environmental Characteristic
- exposure to damp heat in servicecategory C2 48 hours IEC 60068-2-56exposure to damp heat not in service 25...55 °C, RH 95 %) 28 cycles IEC 60068-2-30, salt mistKb/2 IEC 60068-2-52
- Mounting Mode
- fixed plain backplate), fixed profiled sheet metal), fixed slotted backplate)clip-on DIN rail), clip-on Vigirex relay)
- Carbon Footprint Of The Distribution Phase [A4]
- 0.014122708849543, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.026428906647413073, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2025-07-10
- Stocking Flag
- Y
- Device Type
- Relay, Control & Measurement - Protection relay
- Traceability
- No
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Compatibility Code
- TA30
- Device Application
- equipment monitoring and control
- Diameter
- inner 29.4 mm
- Overvoltage Category
- IV
- Product Or Component Type
- earth leakage current sensor
- Returnability
- Yes
- Sustainable Packaging
- No
- Transformer Ratio
- 1/1000
- Rated Operational Current
- 65 A
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect during 10 years people and premises at risk of fire or explosion with assigned voltage 220-240V by detecting and measuring the earth leakage current with sensitivity 0.3-30A.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential In %
- 10
- Width Nominal
- 63 mm
- [Icw] Rated Short-time Withstand Current
- 85 kA 0.5 s
- [Ui] Rated Insulation Voltage
- 1000 V
- Connections - Terminals
- screw connection 0.22-2.5 mm²
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8504316000
Persona Type NamesContractor, Panel Builder
Market SegmentationCommercial, Industrial
Market Segmentresidential, small commercial
Network Frequency50/60 Hz, 400 Hz
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.18920070231863606
Carbon Footprint Of The Manufacturing Phase [A1 To A3]9 kg CO2 eq., 9.004578198585518
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2310022EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1824
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Calorific Value0.98 MJ
Current Transformer TypeA type closed toroid
Device Short NameTA30
Energy Efficiency OptimizedFalse
Product AvailabilityStock - Normally stocked in distribution facility
RangeVigiPacT
Software Versionv5.9.4
Total Lifecycle Carbon Footprint9 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2310022EN
Pep Verification Date2023-12-05
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal74.5 mm
Certificate AgencyCE
[Ie] Rated Operational Current65 A
[Uimp] Rated Impulse Withstand Voltage12 kV
Residual Short-circuit Withstand Current85 kA / 0.5 s IEC 60947-2
Package Weight(Lbs)108.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ambient Air Temperature For Storage
- -55-85 °C, -55-85 °C
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2310022EN
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-12-05
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Operation-35-70 °C, -35-70 °C
Take BackNo
Toxic Heavy Metal FreeYes
Carbon Footprint9.23433051640111
Environmental DisclosureENVPEP2310022EN
Ip Degree Of Protectionbody IP30connectors IP20
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2310022EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- earth leakage current sensor
ETIM
- ETIM 8
- EC002048
ETIM 9EC002048
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
