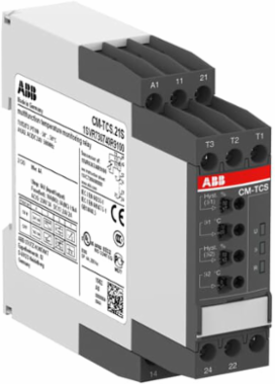

ABB 1SVR730740R9100 CM-TCS.21S Temperature Monitoring Relay, -50 C to +50 C, 24V AC/DC
- MPN: 1SVR730740R9100
- UPC: 804325583930
- PPN: ABB-1SVR730740R9100
- UNSPSC: 39122331
CAD
$559.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The CM-TCS.21S relay is from the CM temperature monitors range. This relay operates with a rated control supply voltage of 24 V AC / DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. The CM-TCS.21S is able to measure temperature with 1 sensor circuit using PT100 sensor. The CM-TCS.21S monitors overtemperature, undertemperature and window monitoring with 2 thresholds. The corresponding threshold values are adjustable. The temperature measuring range is -50..+50°C. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.
Specifications
Dimensions
- Product Net Width
- 22.5 mm
- Product Net Depth / Length
- 103.7 mm
Product Net Height85.6 mm
Product Net Weight0.138 kg
Technical
- Function
- Overtemperature monitoringUndertemperature monitoringOver- and undertemperature monitoring
- Sensor Type
- PT100
- Rated Frequency (f)
- Supply Circuit 50 HzSupply Circuit 60 HzSupply Circuit DC
- Terminal Type
- Screw Terminals
- Rated Operational Current AC-15 (Ie)
- (230 V) 3 A
- Rated Operational Current DC-13 (Ie)
- (24 V) 2 A
- Rated Impulse Withstand Voltage (Uimp)
- Measuring Circuit / Output Circuit 4 kVOutput Circuit 1 / Output Circuit 2 4 kVSupply Circuit / Measuring Circuit 4 kVSupply Circuit / Output Circuit 4 kV
- Degree of Protection
- Housing IP50Terminals IP20
- Pollution Degree
- 3
- Electrical Durability
- AC-12 100000 cycle
- Connecting Capacity
- Flexible with Ferrule 1x 0.5 ... 2.5 mm²Flexible with Ferrule 2x 0.5 ... 1.5 mm²Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²Flexible 1x 0.5 ... 2.5 mm²Flexible 2x 0.5 ... 1.5 mm²Rigid 1x 0.5 ... 4 mm²Rigid 2x 0.5 ... 2.5 mm²
- Wire Stripping Length
- 8 mm
- Mounting Position
- 1 ... 6
- Standards
- CAN/CSA C22.2 No.60947-5-1IEC/EN 60255-26IEC/EN 60255-27IEC/EN 61000-6-2IEC/EN 61000-6-3IEC/EN 63000UL 60947-5-1IEC/EN 60947-5-1
Measuring Range-50 ... +50 °C
Rated Control Supply Voltage (Us)24 V AC/DC
Output2 x 1 c/o or 1 x 2 c/o contacts, configurable
Rated Operational Current AC-12 (Ie)(230 V) 4 A
Rated Operational Current DC-12 (Ie)(24 V) 4 A
Minimum Switching Capacity24 V10 mA
Rated Insulation Voltage (Ui)Measuring Circuit / Output Circuit 300 VOutput Circuit 1 / Output Circuit 2 300 VSupply Circuit / Measuring Circuit 300 VSupply Circuit / Output Circuit 300 V
Overvoltage CategoryIII
Short-Circuit Protective DevicesOutput Circuit NC - F Type Fuses 6 AOutput Circuit NO - F Type Fuses 10 A
Mechanical Durability30000000 cycle
Tightening Torque0.6 ... 0.8 N·m
Recommended Screw Driver0.8 x 44.5Pozidriv 1
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Classifications
- Object Classification Code
- B
- eClass
- V11.0 : 27371810
- E-Number (Sweden)
- 3860666
ETIM 9EC001446 - Temperature monitoring relay
E-Number (Finland)2712328
Environmental
- Ambient Air Temperature
- Operation -40 ... +60 °CStorage -40 ... +85 °C
- RoHS Status
- Following EU Directive 2011/65/EU
Maximum Operating Altitude PermissibleWithout Derating 2000 m
Circular Value
- End of Life Instructions
- 1SAC200290H0001
Technical UL/CSA
- Maximum Operating Voltage UL/CSA
- Output Circuit 300 V AC
- Connecting Capacity UL/CSA
- Flexible 1x 18-14 AWGFlexible 2x 18-16 AWGRigid 1x 20-12 AWGRigid 2x 20-14 AWG
- Pilot Duty UL/CSA
- B300
Contact Rating UL/CSAB300
Tightening Torque UL/CSA7.08 in·lb
Ordering
- Minimum Order Quantity
- 1 piece
Customs Tariff Number85364900
