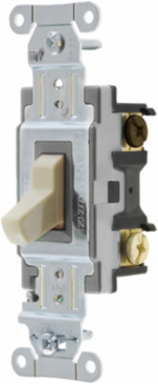

Hubbell Wiring Device-Kellems CSB315I Commercial Grade Toggle Switch, Three Way, 15A 120/277V AC, Ivory
- MPN: CSB315I
- UPC: 783585153902
- PPN: HBL-CSB315I
- UNSPSC: 39122211
CAD
$11.72
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Switches and Lighting Controls, Toggle Switch, Commercial Grade, Three Way, 15A 120/277V AC, Back and Side Wired, Ivory
Features
- Thread cleaning captive mounting screw
- Abuse resistant nylon toggle
- Steel, zinc plated bridge is corrosion resistant
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 4.18 in x 1.49 in x 1.83 in
- Industry Standard(s)
- UL Listed
- Performance
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
- Temperature Rise - Max.
- 30°C maximum at rated current
- Amperage Rating
- 15 A
- Number of Poles
- Single Pole
- Size
- 4.18 in x 1.49 in x 1.83 in
- Type
- Toggle
- Weight
- 0.15 lb.
- Engineering Drawing 1 Display Text
- CSB315I AutoCAD Drawing
- Dielectric Strength
- Withstands 1500V AC minimum for 1 minute
- Style
- Three Way
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- BS315G;BS315I;CS1203I
- Current Rating
- 15 A
- Series
- General Purpose
- BOX SIZE
- 3.700x9.800x4.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585153902
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585153901
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating15 A
Height1.83 in
Length4.18 in
Standards - RoHS Compliance StatusCM
ActionSPDT
ColorIvory
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StandardUL Listed
Voltage Rating120-277 VAC
Width1.49 in
ConnectivityBack and Side Wired
Number Of PolesSingle Pole
Wire Size#14 AWG to #10 AWG
Description - InvoiceSWITCH, COMM, 3W, 15A 120/277V, B+S, IV
Harmonization Code8536509040
MSDS FlagNo
Sub Class CodeA16A250
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.75 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight9.700 lb.
Lowest Level UOMEach
Pallet Height45.000 in
Pallet Weight873.000 lb.
NAICS Code3359315101
Certifications
- EU RoHS Indicator
- Yes
