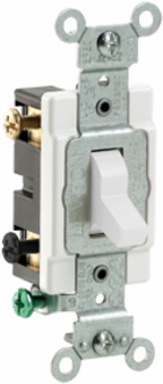

Leviton CS220-2W 20 Amp Double-Pole Toggle Switch, Side Wired, 120/277 Volt, Commercial Grade
- MPN: CS220-2W
- UPC: 078477815786
- PPN: LEV-CS220-2W
CAD
$10.34
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
20 Amp, 120/277 Volt, Toggle Double-Pole AC Quiet Switch, Commercial Spec Grade, Grounding, Side Wired - WHITE
Features
- Leviton’s Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Function
- Double-Pole
- Operating Temperature
- -40°C to 65°C
- Max. Amperage
- 16 Amp
- Dielectric Voltage
- Withstands 1500V for 1 minute
- Termination
- Side Wire
- Terminal Accom.
- 14-12 AWG
- Base Material
- PBT
- Cover Material
- Nylon
- Body Material
- Thermoplastic
- Toggle
- Polycarbonate
- Flammability
- Rated V-2 per UL94
- ANSI
- C-73
- NEMA
- WD-1 & WD-6
- UL Fed Spec WS896E
- File #E7458
- Country of Origin
- Mexico
Voltage120/277 VAC
HP Rating1 HP-120V, 2 HP-240V-277V
Torque Range12-14 inch pounds
Temperature RiseMaximum 30°C rise
Device TypeToggle Switch
Terminal ScrewsSteel 8-32
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Strap MaterialSteel
Actuator MaterialThermoplastic
ContactsSilver-Cadmium .031 Thick
GradeCommercial Specification Grade
UL StandardUL 20
CSA C22.2 No. 111File #152105
NOM057
RoHS CompliantFalse
