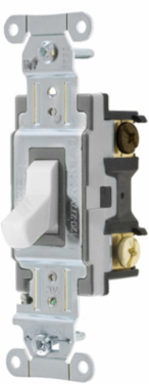

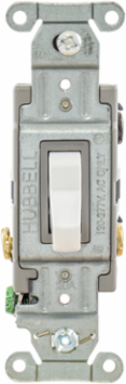

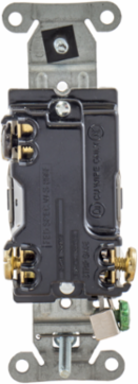

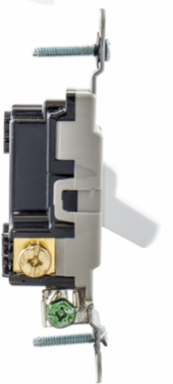

Hubbell Wiring Device-Kellems CSB320W Commercial Grade Three Way Toggle Switch 20A 120/277V AC, Back and Side Wired, White, 4.18 x 1.49 x 1.83 Inch
- MPN: CSB320W
- UPC: 783585154244
- PPN: HBL-CSB320W
- UNSPSC: 39122211
CAD
$27.88
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Commercial Grade 3 Way Toggle Switch, 20A 120/277V AC, Back and Side Wired, White
Features
- Versatile three-way operation for multi-location lighting control
- Supports 20A at 120/277V AC, suitable for commercial and residential use
- Features both back and side wiring options for flexible installation.
- This Three Way Toggle Switch features a corrosion-resistant zinc-plated steel bridge, abuse-resistant nylon toggle, and thread-cleaning captive mounting screws for enhanced durability and reliability.
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 4.18 in x 1.49 in x 1.83 in
- Industry Standard(s)
- UL Listed
- Performance
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
- Temperature Rise - Max.
- 30°C maximum at rated current
- Amperage Rating
- 20 A
- Number of Poles
- Single Pole
- Size
- 4.18 in x 1.49 in x 1.83 in
- Standard
- UL Listed
- Voltage Rating
- 120-277 VAC
- Width
- 1.49 in
- Connectivity
- Back and Side Wired
- Number Of Poles
- Single Pole
- Wire Size
- #14 AWG to #10 AWG
- Description - Invoice
- SWITCH, COMM, 3W, 20A 120/277V, B+S, WH
- Harmonization Code
- 8536509040
- MSDS Flag
- No
- Sub Class Code
- A16A250
- Material
- Nylon
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.95 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 5.815 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 45.900 in
- Pallet Weight
- 859.500 lb.
- NAICS Code
- 3359315101
Current / Amperage Rating20 A
Height1.83 in
Length4.18 in
Standards - RoHS Compliance StatusCM
ActionSPDT
ColorWhite
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Special FeaturesThis Three Way Toggle Switch features a corrosion-resistant zinc-plated steel bridge, abuse-resistant nylon toggle, and thread-cleaning captive mounting screws for enhanced durability and reliability.
TypeToggle
Weight0.15 lb.
Engineering Drawing 1 Display TextCSB320W AutoCAD Drawing
Dielectric StrengthWithstands 1500V AC minimum for 1 minute
StyleThree Way
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberBS320W;CS1223W;CSB320WHI
Current Rating20 A
SeriesGeneral Purpose
BOX SIZE3.300x9.900x4.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585154244
Case - Total Units50 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585154243
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
