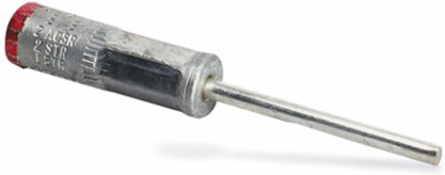

Blackburn PRS35N Compression Pin Terminal 1/2 x 8 Inch Pigtail, 35 kV, Aluminum
- MPN: PRS35N
- UPC: 783786050475
- PPN: T-B-PRS35N
- UNSPSC: 39121458
CAD
$173.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Compression Pin Terminal Aluminum, Contax filled for Wire Range 336 30/7,26/7,18/1, 397 18/1 ASCR, 336-400 MCM, Pigtail: 0.500 x 8, Hydraulic Dies: B80EA, CSA 26, 96H, EEI 13A, 655, 1 1/8
Specifications
Additional Information
- Application
- Designed for use in joining Aluminum Secondaries and Services to Copper Transformer Bushings
- Connection Type
- Compression
- Insulation Material
- None
- Mounting Type
- None
- Pigtail Size
- 1/2 x 8 in
- Product Type
- Pigtail Compression Sleeve
- Special Functions
- Sleeves are Highly Conductive Aluminum. Pigtails are Solid Copper, Tin-Plated. Installed with Standard Tools and Dies. Prefilled with Oxide Inhibitor.
- Voltage Rating
- 35 kV
Brand / LabelBlackburn
Effective Date19991027
MaterialAluminum Sleeve, Pre-attached Copper Pigtail
Number of Conductors2
Product NameELECTRICAL TERMINAL
SizeSleeve Length 5 inches
Surface FinishingTinplated Pigtail
Ordering
- Country of Origin
- Mexico (MX)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4685 >> Wire or cable compression reducer
