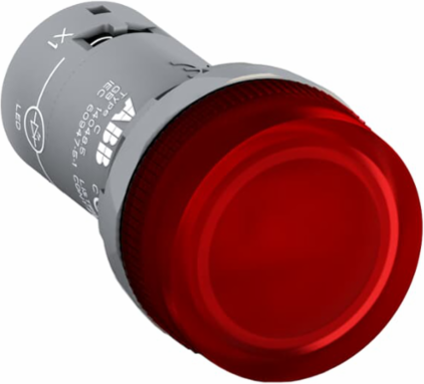

ABB CL2-623R CL2-623R Pilot Light
- MPN: CL2-623R
- UPC: 888614470385
- PPN: ABB-CL2-623R
- UNSPSC: 39121534
CAD
$89.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The CL2-623R Pilot Light is: Compact - Pilot Light - Pilot light head - Red - Illuminated - 230, 230V AC
Specifications
Additional
| Voltage | 230 V AC |
|---|---|
| Actuator Type | Pilot light head |
| Connection Type | Screw Clamp |
| Tightening Torque | 0.9 N m |
| Degree of Protection | Front IP66, IP67, IP69K; Terminals IP20 |
| Ambient Air Temperature | Operation -25 to +70 C; Storage -40 to +85 C |
| Connecting Capacity | 1x 18...14 AWG, 2x 18...14 AWG; Flexible and solid 0.75...2.5 mm2 |
| Product Net Weight | 0.018 kg |
| RoHS Information | 2CMT2015-005451 |
| WEEE Category | 5. Small Equipment (no external dimension > 50 cm) |
| Lamp Type | 230 V AC, integrated LED |
|---|---|
| Color | Red |
| Terminal Type | Screw Terminals |
| Wire Stripping Length | 8 mm |
| Enclosure Type NEMA | Type 1, 12, 13, 3R, 4, 4X |
| Pollution Degree | 3 |
| Product Net Dimensions | Height 0.03 m, Width 0.03 m, Depth/Length 0.052 m |
| RoHS Status | Compliant with EU Directive 2011/65/EU and Amendment 2015/863 |
| Pollution Degree | 3 |
| Object Classification Code | P |
