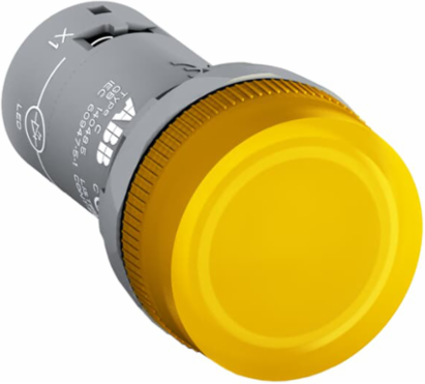

ABB CL2-623Y CL2-623Y Pilot Light
- MPN: CL2-623Y
- UPC: 888614470408
- PPN: ABB-CL2-623Y
- UNSPSC: 39121534
CAD
$89.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The CL2-623Y Pilot Light is: Compact - Pilot Light - Pilot light head - Yellow - Illuminated - 230, 230V AC
Specifications
Dimensions
- Product Net Width
- 0.03 m
- Product Net Depth / Length
- 0.052 m
Product Net Height0.03 m
Product Net Weight0.018 kg
Technical
- Ambient Air Temperature
- Operation -25 ... +70 °CStorage -40 ... +85 °C
- Actuator Type
- Pilot light head
- Lamp Type
- 230 V AC, integrated LED
- Enclosure Type NEMA
- Type1Type12Type13Type3RType4Type4X
- Rated Frequency (f)
- Supply Circuit 50 / 60 Hz
- Connecting Capacity
- Flexible with Ferrule 1 x 0.75...2.5 mm²Flexible with Ferrule 2 x 0.75...2.5 mm²Flexible with Insulated Ferrule 1 x 0.75...2.5 mm²Flexible with Insulated Ferrule 2 x 0.75...2.5 mm²Flexible 1 x 0.75 ... 2.5 mm²Flexible 2 x 0.75 ... 2.5 mm²Solid 1 x 0.75...2.5 mm²Solid 2 x 0.75...2.5 mm²
- Terminal Type
- Screw Terminals
- Wire Stripping Length
- 8 mm
ColorYellow
IlluminationIlluminated
Degree of ProtectionFront IP66Front IP67Front IP69KTerminals IP20
Pollution Degree3
Rated Operational Voltage230 V ACSupply Circuit 230V AC V
Connection TypeScrew Clamp
Tightening Torque0.9 N·m
Classifications
- Object Classification Code
- P
- IDEA Granular Category Code (IGCC)
- 4766 >> Indicator or pilot lights
- E-Number (Norway)
- 4373547
eClassV11.0 : 27371223
E-Number (Finland)2313565
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Information
- 2CMT2015-005451
- WEEE B2C / B2B
- Business To Business
RoHS Date0635 4
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Technical UL/CSA
- Connecting Capacity UL/CSA
- 1x 18...14 AWG2x 18...14 AWG
Ordering
- Minimum Order Quantity
- 10 piece
Customs Tariff Number8536619090
