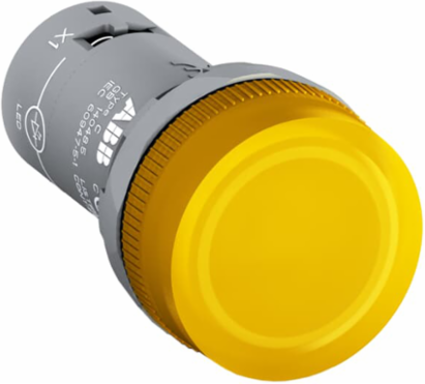

ABB CL2-542Y CL2-542Y Pilot Light
- MPN: CL2-542Y
- UPC: 888614470354
- PPN: ABB-CL2-542Y
- UNSPSC: 39121534
CAD
$76.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The CL2-542Y Pilot Light is: Compact - Pilot Light - Pilot light head - Yellow - Illuminated - 380...415V AC
Specifications
Additional
| Rated Voltage | 380...415 V AC |
|---|---|
| Tightening Torque | 0.9 N m |
| Wire Stripping Length | 8 mm |
| Terminal Type | Screw Terminals |
| Degree of Protection | Front IP66, IP67, IP69K; Terminals IP20 |
| Material | Integrated LED Lamp |
| Product Dimensions | Height 0.03 m, Width 0.03 m, Depth 0.052 m |
| Color | Yellow |
| eClass | V11.0 : 27371223 |
| Customs Tariff Number | 8536619090 |
| E-Number (Sweden) | 3705788 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Enclosure Type NEMA | Type 1, 12, 13, 3R, 4, 4X |
| Rated Frequency | 50 / 60 Hz |
|---|---|
| Ambient Air Temperature | Operation -25 ... +70 C, Storage -40 ... +85 C |
| Connection Type | Screw Clamp |
| Connecting Capacity | Flexible and Solid 0.75 ... 2.5 mm2, including Ferrule and Insulated Ferrule, 1 or 2 wires |
| Pollution Degree | 3 |
| Product Net Weight | 0.018 kg |
| Actuator Type | Pilot light head |
| RoHS Compliance | Directive 2011/65/EU, Amendment 2015/863 |
| Object Classification Code | P |
| E-Number (Finland) | 2313560 |
| E-Number (Norway) | 4373542 |
| WEEE B2C / B2B | Business To Business |
| Illumination | Illuminated |
