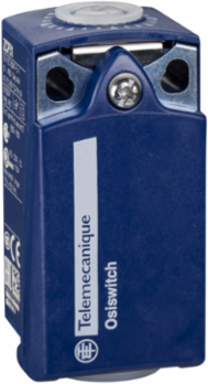

Telemecanique Sensors ZCP31 Limit switch body, Limit switches XC Standard, ZCP, compact, 1NC+2 NO, snap action
- MPN: ZCP31
- PPN: TES-ZCP31
- UNSPSC: 39122213
CAD
$49.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This body, is part of the XCKD offer, a range of compact design, plastic and metal, limit switches. It is a 3-pole plastic body, assuring positive opening operation. Contacts: 1 NC + 2 NO, snap action. A wide range of heads/operators, is compatible with this body.
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- Standard compact
- Range Of Product
- Telemecanique Limit switches XC Standard
- Contact Operation
- snap action
- Body Material
- plastic
- Design
- compact
- Number Of Poles
- 3
Contacts Type And Composition1 NC + 2 NO
Body Typefixed
Associated HeadZCE11 || ZCEH0 || ZCE14 || ZCE01 || ZCE66 || ZCE27 || ZCE63 || ZCE28 || ZCE06 || ZCE09 || ZCEH2 || ZCE62 || ZCE02 || ZCE10 || ZCE08 || ZCE05 || ZCE64 || ZCE13 || ZCE29 || ZCE65 || ZCE67 || ZCE21 || ZCE24 || ZCE07
Product Or Component Typelimit switch body
Device Short NameZCP
Complementary
- Height
- 65-65 mm
- Short-Circuit Protection
- 6 A cartridge fuse gG
- Positive Opening
- with
- Contacts Insulation Form
- Zb
- Contacts Material
- silver plated contacts
- Width
- 31 mm
- Depth
- 30 mm
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60664 || 4 kV IEC 60947-1
Electrical Durability5000000 cycles, DC-13 120 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage300 VUL 508 || 300 VCSA C22.2 No 14 || 400 V 3)IEC 60947-1
Minimum Actuation Speed0.01 m/s
Electrical Connectionscrew-clamp terminals 1 x 0.34...2 x 0.75 mm²
Contact Code DesignationR300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A || C300, AC-15 (Ue = 240 V), Ie = 0.75 A EN/IEC 60947-5-1 appendix A
Associated Connection ComponentZCPEG11 || ZCPEF12 || ZCPEG13 || ZCPEN12 || ZCPEP16 || ZCPEP20
Net Weight0.07 kg
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
- Product Compatibility
- XCKP
Ambient Air Temperature For Operation-25-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI110603EN
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Environmental DisclosureENVPEP110606EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
