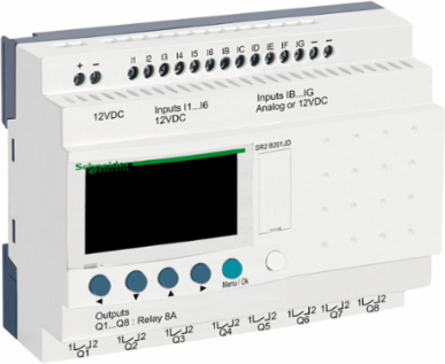

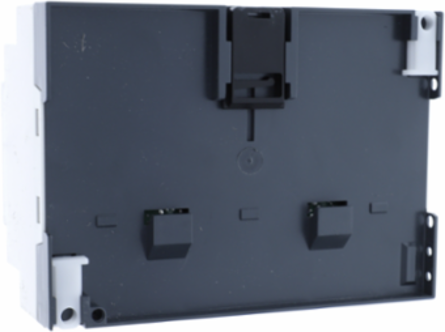

Telemecanique Sensors SR2B201JD Compact Smart Relay with 20 I/Os, 12V DC, Local Display, IP20/IP40
Telemecanique Sensors SR2B201JD Compact Smart Relay with 20 I/Os, 12V DC, Local Display, IP20/IP40
- MPN: SR2B201JD
- PPN: SCH-SR2B201JD
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$375.28/ EA
Description
This product is part of Smart Relay - Zelio Logic SR2/SR3, an offer of simple automation systems from 10 to 40 I/Os. This Zelio Logic compact smart relay features 20 I/Os, local display, 0 to 240 with ladder and 0 to 500 with FBD programming control scheme lines. It is a module with rated supply voltage of 12V DC and cycle time of 6ms to 90ms. It offers 12 resistive discrete inputs with voltage of 12V DC, 6 analogue input ranges from 0V to 10V, 0V to 12V and 8 relay outputs. It is an IP20 and IP40 rated product. It weighs 0.38kg. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 60068-2-6 Fc and EN/IEC 61000-4-11 standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.
Specifications
Environment
- Product Certifications
- C-Tick || GL || UL || CSA || GOST
- Disturbance Radiated/Conducted
- class B EN 55022-11 group 1
- Immunity To Microbreaks
- 10 ms repeated 20 times
- Ip Degree Of Protection
- IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)
- Ambient Air Temperature For Storage
- -40-70 °C
- Maximum Altitude Transport
- 3048 m
StandardsIEC 60068-2-6 Fc || IEC 61000-4-11 || IEC 61000-4-5 || IEC 61000-4-2 level 3 || IEC 61000-4-6 level 3 || IEC 61000-4-4 level 3 || IEC 61000-4-12 || IEC 60068-2-27 Ea || IEC 61000-4-3
Ambient Air Temperature For Operation-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
Environmental CharacteristicEMC directive IEC 61000-6-2 || EMC directive IEC 61000-6-3 || EMC directive IEC 61000-6-4 || EMC directive IEC 61131-2 zone B || low voltage directive IEC 61131-2
Pollution Degree2 IEC 61131-2
Relative Humidity95-95 % without condensation or dripping water
Operating Altitude2000 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP060406EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI0604006EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Contacts Type And Composition
- NO relay output
- Discrete Input Type
- resistive
- Analogue Input Range
- 0...10 V || 0...12 V
- Output Thermal Current
- 8 A for all 8 outputs relay output
- Number Or Control Scheme Lines
- 0-240 ladder || 0-500 FBD
- Backup Time
- 10 years 25 °C
- Analogue Input Type
- common mode
- Current State 1 Guaranteed
- >= 2 mA I1...IA and IH...IR discrete input circuit) || >= 0.5 mA IB...IG used as discrete input circuit)
- Clock
- with
- Local Display
- with
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV EN/IEC 60947-1 and EN/IEC 60664-1
- Output Voltage Limits
- 24...250 V AC relay output) || 5...30 V DC relay output)
- Electrical Durability
- AC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1 || AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1 || DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1 || DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1
- Analogue Input Number
- 6
- Input Compatibility
- 3-wire proximity sensors PNP discrete input
- Supply Voltage Limits
- 10.4-14.4 V
- Overvoltage Category
- III IEC 60664-1
- Maximum Supply Current
- 200 mA without extension)
- Switching Capacity In Ma
- >= 10 mA 12 V relay output)
- Operating Rate In Hz
- 0.1 Hz at Ie)relay output || 10 Hz no load)relay output
- Discrete Input Number
- 12 IEC 61131-2 Type 1
- Reverse Polarity Protection
- with
- Repeat Accuracy
- +/- 2 % 55 °C analogue input circuit
- Checks
- program memory on each power up
Input Impedance14 kOhm IB...IG used as analogue input circuit || 14 kOhm IB...IG used as discrete input circuit || 2.7 kOhm I1...IA and IH...IR discrete input circuit
Number Of Outputs8 relay
Conversion Error+/- 5 % 25 °C analogue input circuit || +/- 6.2 % 55 °C analogue input circuit
Discrete Input Voltage12 V DC
Lsb Value39 mV analogue input circuit
Clock Drift12 min/year 0-55 °C || 6 s/month 25-25 °C
Discrete Input Current4 mA
Response Time10 ms from state 0 to state 1)relay output || 5 ms from state 1 to state 0)relay output
Power Dissipation In W2.5 W without extension
Net Weight0.38 kg
Voltage State 0 Guaranteed<= 3 V IB...IG used as discrete input circuit || <= 2.4 V I1...IA and IH...IR discrete input circuit
Conversion Timesmart relay cycle time analogue input circuit
Connections - Terminalsscrew terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid || screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid || screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
Voltage State 1 Guaranteed>= 7 V IB...IG used as discrete input circuit || >= 5.6 V I1...IA and IH...IR discrete input circuit
Current State 0 Guaranteed<= 0.9 mA I1...IA and IH...IR discrete input circuit) || <= 0.9 mA IB...IG used as discrete input circuit)
Operating Distance10 m between stations, with screened cable (sensor not isolated) analogue input circuit
Mechanical Durability10000000 cycles relay output
Tightening Torque0.5 N.m
Analogue Input Resolution8 bits at maximum voltage
Counting Frequency1 kHz discrete input
Cycle Time6-90 ms
Maximum Permissible Voltage14.4 V analogue input circuit
[Us] Rated Supply Voltage12 V DC
Specifications
- Range Of Product
- Zelio Logic
Product Or Component Typecompact smart relay
