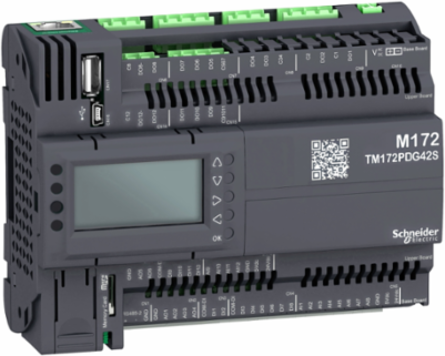

Schneider Electric TM172PDG42S Controller, Modicon M171/M172/M173, performance display 42 IO, Modbus, solid state relay

MPN: TM172PDG42S
PPN: SCH-TM172PDG42S

$778.12

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the Modicon M171/M172 range, an offer of programmable controllers for HVAC solutions. This programmable controller offers 12 discrete inputs with sink or source (positive/negative) discrete logic. It is a module with discrete input voltage of 24V AC/DC, 2.5mA. It offers 12 configurable by pair analogue input and 2 analogue outputs of 4mA to 20mA, ±0V to ±10V. It features 3 LEDs for programmable and 1 LED for power signaling. It is an IP20 rated product. Its dimensions are 144mm (width) x 60.5mm (depth) x 110mm (height). It weighs 0.385kg. The main application of this module is HVAC and pumping solution. This product is certified by CE, EAC, CSA and CURus. It meets EN/IEC 60730 standard. It is suitable for DIN rail mount and panel mounting with accessory. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, Italy, Sweden, United States

Depth	60.5 mm

Important Information Attributes

Persona Type Ids	EU, OM, OM8, SI
Local Signalling	1 LED (red) for programmable, 1 LED (yellow) for programmable, 1 LED (green) for programmable, 1 LED (green) for power
Number Of Port	1 CAN port - screw terminal block1 USB type A - USB type A female1 USB type mini B - USB device port Mini-B, 2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP), 1 Ethernet - RJ45 Modbus TCP and BACnet IP with webserver)
Input/Output Number	12 analog input6 analog output, 12 digital input, 12 digital output
Carbon Footprint Of The End-of-life Phase [C1 To C4]	1 kg CO2 eq., 1.037092482472762
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	37 kg CO2 eq., 37.02101742543932
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1709014EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1929
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Industrial
Display Type	Backlit LCD - 128 x 64 pixels
Power Consumption In W	15 W 24 V AC/DC
Product Or Component Type	programmable controllers
Range Of Product	Modicon M171/M172
Returnability	No
Software Version	v6.2.5-6
Total Lifecycle Carbon Footprint	660 kg CO2 eq.
Upgradeability	Yes
Pep Code	ENVPEP1709014EN
Pep Verification Date	2025-09-01
Psr Version	No PSR
Data Source	referent product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; Italy, IT
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; Asia Pacific, APAC
Height Nominal	110 mm
[Us] Rated Supply Voltage	24 V +/- 10 % AC20...38 V DC
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8537109160

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
Mounting Support	panel mounting with accessory, DIN rail
Certificate Agency	cURus, CSA, CE, EAC
Carbon Footprint Of The Distribution Phase [A4]	0.1562931105123967, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.02976637944179302, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	622 kg CO2 eq., 621.7379964170797
Local Publishable Date	2026-01-12
Stocking Flag	Y
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Overvoltage Category	II
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Specific Application	HVAC and pumping solution
Realtime Clock	built-in clock at -20-55 °C
Sensor Power Supply	5-5 V DC 50 mA supplied by the controller24-24 V DC 150 mA supplied by the controller
Sustainable Packaging	No
Updatability	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To manage a wide range of HVAC/R, pumping and many other applications and a 100% of the time for 10 years
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	1314
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Width Nominal	144 mm
Number Of Inputs/Outputs	42
Package Weight(Lbs)	445.000 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-20-55 °C UL 60730-1, -20-55 °C UL 60730-1-20-55 °C UL 60730-1, -20-55 °C UL 60730-1
Directives	2006/95/EC - low voltage directive, 86/188/EEC - physical agents (noise) directive
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1709014EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	0...6561.68 ft (0...2000 m)
Packaging Without Single Use Plastic	No
Relative Humidity	5-95 % non-condensing
Pep Verification Date	2025-09-01
Psr Version	No PSR

Ambient Air Temperature For Storage	-30-70 °C, -30-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	659.9821658149459
Environmental Disclosure	ENVPEP1709014EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1709014EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

General Attributes

Product Or Component Type	programmable controllers
Upgradeability	Yes

Range Of Product	Modicon M171/M172

ETIM

ETIM 8	EC000236

ETIM 9	EC000236

Output Attributes

Analogue Output Number	4 voltage 0...10 V, 2 voltage/current 4...20 mA or 0...10 V or PWM (2 kHz)
Discrete Output Number	5 relay outputs SPST with same common2 solid state, isolated SSR with independent common, 2 relay outputs SPDT with same common, 3 relay outputs SPST with independent common

Discrete Output Current	0.5 A solid state, isolated, 1 A relay SPDT3 A relay SPST

Input Attributes

Analogue Input Type	impedance 0...1500 hOhm, impedance 0...300 daOhm, direct input, NTC temperature probe - 50...110 °C 0.1 °C extended)voltage 0...10 V, NTC temperature probe - 40...150 °C 0.1 °Ccurrent 0...20 mA/4...20 mAPTC temperature probe - 55...150 °C 0.1 °Cvoltage 0...5 V absolute or ratiometric)Pt 1000 temperature probe - 200...850 °C 0.1 °C
Discrete Input Current	2.5 mA
Discrete Input Number	12
Input Impedance	10 kOhm
