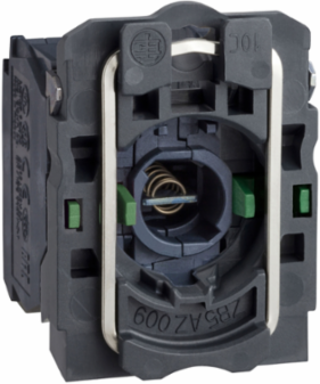

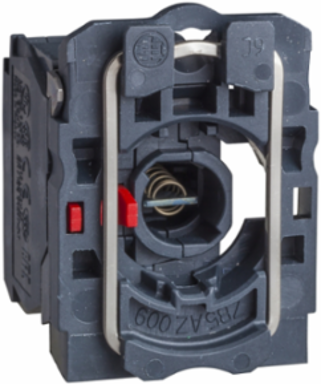

Schneider Electric ZB5AW063 Harmony XB5 Complete Body/Contact Assembly, 2NO, 250V, IP20, Standard Contacts

  • MPN: ZB5AW063
  • PPN: SCH-ZB5AW063
  • UNSPSC: 39122216

CAD

$71.08

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by BA9s base Integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.

Documentation & Downloads

Specifications

Key Specifications

Country of OriginFrance
Weight32 g

Physical Attributes

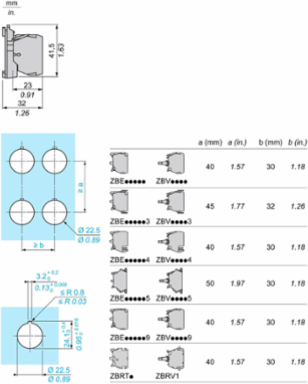

Cad Overall Depth32 mm
Cad Overall Width30 mm
Cad Overall Height42 mm

Complementary Attributes

Ie Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Ui Rated Insulation Voltage600 V 3)IEC 60947-1
Us Rated Supply Voltage<= 250 V, <= 250 V
Uimp Rated Impulse Withstand Voltage6 kV IEC 60947-1

Important Information Attributes

Customizable0, no
Electrical Reliabilityλ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Shape Of Screw Headcross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
Certificate AgencyCSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
Carbon Footprint Of The Distribution Phase A40.009224099821746882, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.0088698752228164, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B641 kg CO2 eq., 40.518062244434354
Local Publishable Date2026-01-12
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2404014EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Average Percentage Of Recycled Metal Content29 %
Bulb BaseBA 9s
Contact Operationslow-break
Contacts Type And Composition2 NO
Device Short NameZB5
Fixing Collar Materialplastic
Light Block Supplydirect <2.4 W
Operating Force2.3 N NO changing electrical state
Operating Travel2.6 mm NO changing electrical state)4.3 mm total travel)
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTH
ReturnabilityYes
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Software Versionv5.9.4
Tightening Torque0.8-1.2 N.m IEC 60947-1
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Connections Terminalsscrew clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
Database Version2022-01
Nbr. Of Units In Pkg.1
Ith Conventional Free Air Thermal Current10 A IEC 60947-5-1
Warranty In Months18
Functional Unit Quantity1
Reference Lifetime In Y10
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Light Sourcebulb not included, bulb not included
Contacts Composition2 NO
Terminals Description Iso N°1(11-12)NC, (11-12)NC
Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.07397076648841354
Carbon Footprint Of The Manufacturing Phase A1 To A30.2 kg CO2 eq., 0.22305882352941178
Local Data StatusPublishable
Return IndicatorY
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Product Kit IdentifierN
Average Percentage Of Recycled Plastic Content16 %
Compatibility CodeZB5
Contacts Materialsilver alloy (Ag/Ni)
Contacts Usagestandard
Electrical Shock Protection Classclass II conforming to IEC 60536
Head Typestandard
Mechanical Durability5000000 cycles
Operating Torque0.05 N.m NO changing electrical state
Positive Openingwithout
Product Or Component Typecomplete body/contact assembly and light block
Range Of ProductHarmony XB5
Sale Per Indivisible Quantity1
Signalling Typesteady
Sustainable PackagingYes
Total Lifecycle Carbon Footprint41 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Supply Voltage 20 Supply Voltage<= 250 V
Data Sourceextrapolated product
Customs Code8536509035
Short Circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Functional Unit DescriptionHarmony XB5 illuminated modular green pushbutton operates with a spring return mechanism is supplied with 24V AC/DC which uses an integral LED and screw clamp terminals. It is clearly distinguishable visually at a distance with help of bright and long lasting LED illumination. Product has power consumption of 0.434 W with use rate of 71% with life span of 10 years and adhering to international standards IEC 60947-5-1 &amp; UL 508.
Functional Unit UnitUnit

Environment Attributes Main

Ambient Air Temperature For Operation-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint40.83318580949675
Environmental DisclosureENVPEP2404014_V1
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-06-09
Psr VersionPSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level29 %
Mercury FreeYes
Circularity ProfileENVEOLI2404014EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2404014_V1
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Typecomplete body/contact assembly and light block
Range Of ProductHarmony XB5

ETIM

ETIM 8EC000204
ETIM 10EC000204
ETIM 9EC000204

Contractual Warranty Attributes

Warranty Period18 months
Warranty18 months

Overview Attributes

Device Presentationbasic sub-assemblies
Harmony XB5 Complete Body/Contact Assembly, 2NO, 250V, IP20, Standard Contacts
Harmony XB5 Complete Body/Contact Assembly, 2NO, 250V, IP20, Standard Contacts
