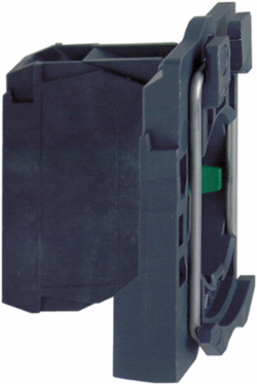

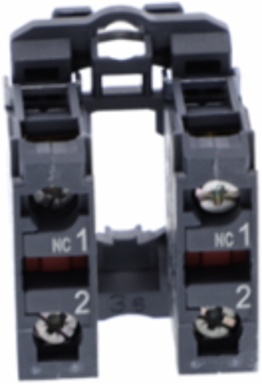

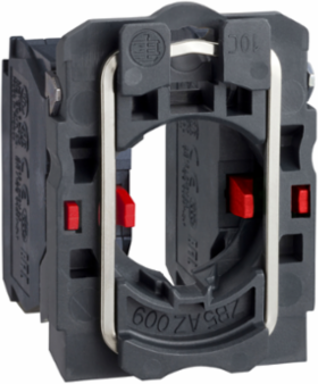

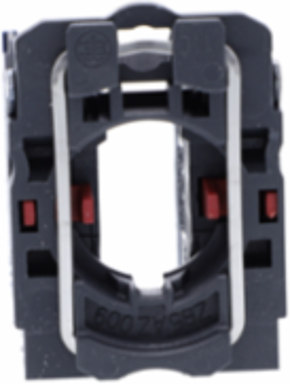

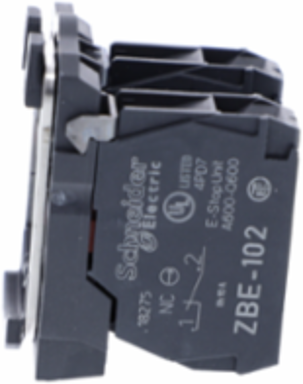

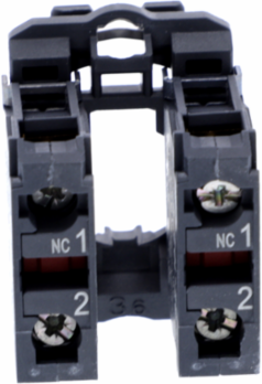

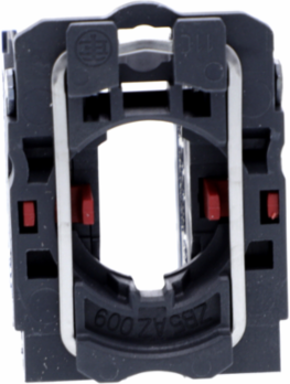

Schneider Electric ZB5AZ104 Harmony XB5 Pushbutton Contact Block, 2NC, Plastic, IP20, 42 mm Height
- MPN: ZB5AZ104
- PPN: SCH-ZB5AZ104
CAD
$40.32
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory

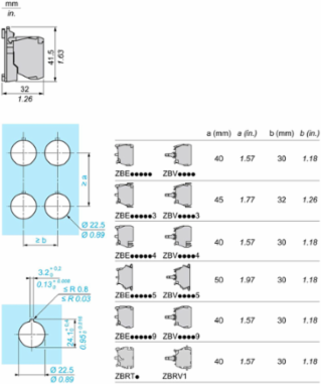

Spec sheet
Description
This Harmony XB5, single contact block uses screw clamp terminals. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB5 complete push-button units and selector switches via a clip assembly and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. The base unit to start assembling your plastic push-button or switch. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Features
- The Schneider Electric ZB5AZ104 features a 2 NC (Normally Closed) contact configuration utilizing slow-break operations. This layout ensures immediate, reliable circuit interruption for safety dropouts and dual-channel control loops, eliminating the risk of signaling overlap in critical automated sequences.
- Engineered explicitly for the standard 22mm Harmony XB5 plastic range, this complete assembly includes both the single contact blocks and the body fixing collar. It snaps cleanly onto existing XB5 pushbuttons, selector switches, and emergency stop operators without requiring specialized tooling, streamlining your inventory by utilizing a single mounting platform.
- Designed with an innovative clip-on body assembly and versatile, shake-proof screw clamp terminals, this module minimizes field installation overhead. The terminal geometry supports conductors ranging from 0.22 mm2 up to dual 1.5 mm2 wires with cable ends, allowing field technicians to complete high-density control panel wiring quickly and securely.
- Built to withstand heavy-duty industrial environments, this contact assembly boasts a mechanical durability rating of 10,000,000 cycles. Coupled with a vibration resistance of 5 gn (up to 500 Hz) and shock resistance up to 50 gn, it ensures consistent electrical continuity on high-impact packaging lines, stamping presses, and material handling systems.
- Featuring a broad operating temperature range of -40 C to 70 C and a robust, chemically resistant plastic collar, this assembly thrives where oils, detergents, and cutting fluids are present. It offers an IP20 finger-safe protection rating index to safeguard maintenance personnel against accidental live-circuit contact in demanding factory floor environments.
