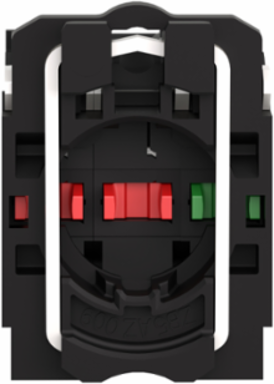

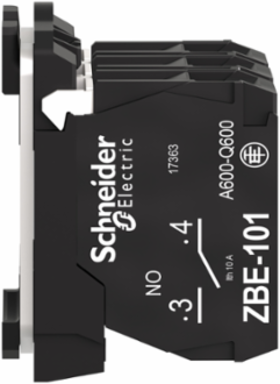

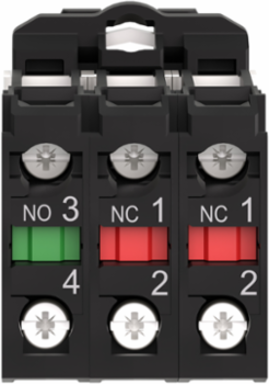

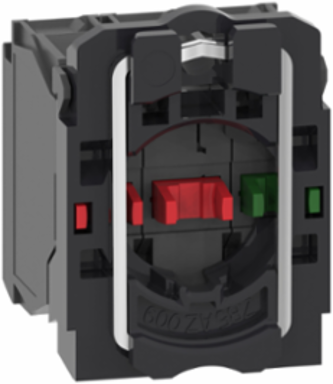

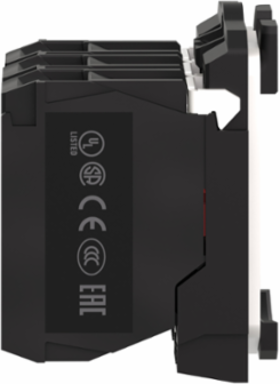

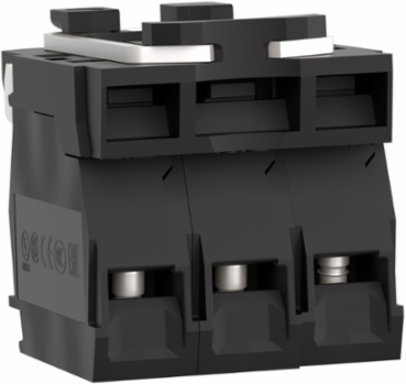

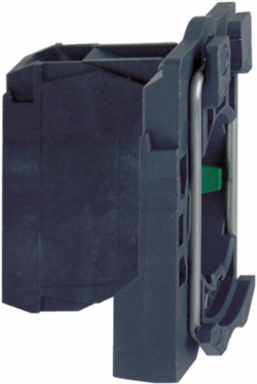

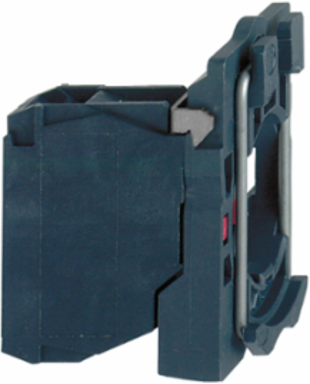

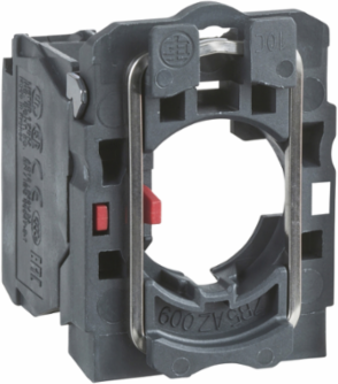

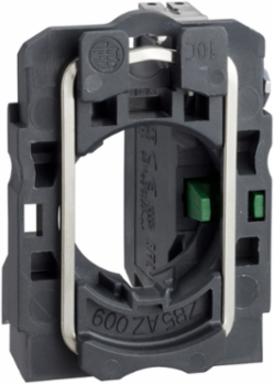

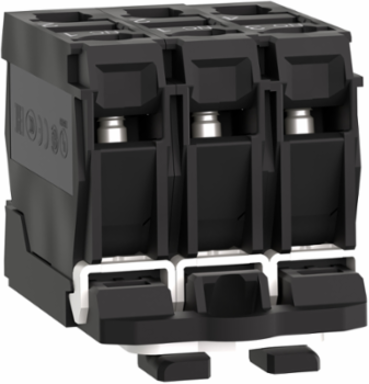

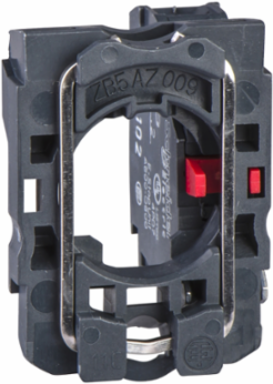

Schneider Electric ZB5AZ141 Harmony XB5 Single Contact Block, 1NO+2NC, IP20 Protection, 0.04 kg

MPN: ZB5AZ141
PPN: SCH-ZB5AZ141
UNSPSC: 39122221

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$58.09

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB5 complete push-button units and selector switches via a clip assembly and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.

Features

Quick and easy assembly and disassembly
Robustness to withstand harsh environments
With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
A wide choice of contact blocks for general purposes or specific applications (low current, standard)
Excellent mechanical connection with operator head
A large set of accessories to customize your panels

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

Weight	21 g

Physical Attributes

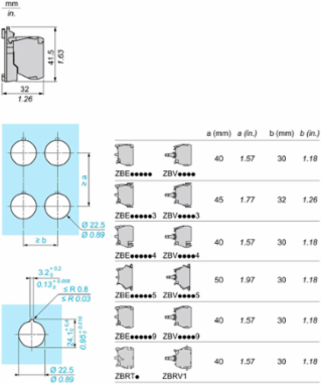

Cad Overall Depth	32 mm
Cad Overall Width	30 mm

Cad Overall Height	42 mm

Complementary Attributes

Ie Rated Operational Current	3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Uimp Rated Impulse Withstand Voltage	6 kV IEC 60947-1

Ui Rated Insulation Voltage	600 V 3)IEC 60947-1

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Contact Operation	slow-break, slow-break
Device Composition	fixing collar, body
Electrical Reliability	λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
Contacts Composition	1 NO + 2 NC
Terminals Description Iso N°1	(11-12)NC, (3-4)NO, (11-12)NC, (3-4)NO
Carbon Footprint Of The End Of Life Phase C1 To C4	0 kg CO2 eq., 0.038373942860167966
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.2 kg CO2 eq., 0.15735194721341966
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Average Percentage Of Recycled Plastic Content	24 %
Contact Block Type	single
Contacts Type And Composition	1 NO + 2 NC
Device Short Name	ZB5
Head Type	standard
Operating Travel	1.5 mm NC changing electrical state)2.6 mm NO changing electrical state)4.3 mm total travel)
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TH
Returnability	Yes
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	0.2 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Connections Terminals 8 Connections Terminals	screw clamp terminals
Data Source	extrapolated product
Customs Code	8538908180
Short Circuit Protection	10 A cartridge fuse gG IEC 60947-5-1
Functional Unit Description	XB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.A push button switch's primary purpose is to turn something on or off in industrial applications. This pushbutton power consumption is 0.002W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
Functional Unit Unit	Unit

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Customizable	0, no
Electrical Durability	1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Shape Of Screw Head	cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
Certificate Agency	BV, UL, CSA, DNV, LROS (Lloyds register of shipping)
Carbon Footprint Of The Distribution Phase A4	0.007413259083391998, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.005597534426882791, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	0 kg CO2 eq., 0.03592690140845071
Local Publishable Date	2026-01-12
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2303008EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Average Percentage Of Recycled Metal Content	12 %
Compatibility Code	ZB5
Contacts Material	silver alloy (Ag/Ni)
Contacts Usage	standard contacts
Fixing Collar Material	plastic
Mechanical Durability	10000000 cycles
Positive Opening	with IEC 60947-5-1 appendix K
Product Or Component Type	complete body/contact assembly
Range Of Product	Harmony XB5
Sale Per Indivisible Quantity	1
Software Version	v5.9.4
Tightening Torque	0.8-1.2 N.m IEC 60947-1
Vibration Resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Connections Terminals	screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
Database Version	2022-01
Nbr. Of Units In Pkg.	1
Ith Conventional Free Air Thermal Current	10 A IEC 60947-5-1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Take Back	No
Recycled Metal Content At Cr Level	12 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.2446635849923131
Environmental Disclosure	"ENVPEP2303008EN"
Ip Degree Of Protection	IP20 IEC 60529
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2024-03-24
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2303008EN
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	"ENVPEP2303008EN"
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
