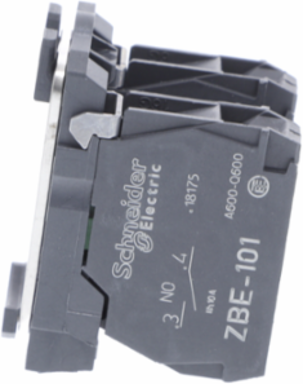

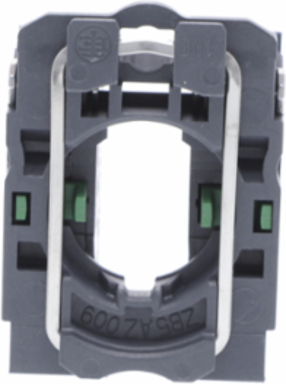

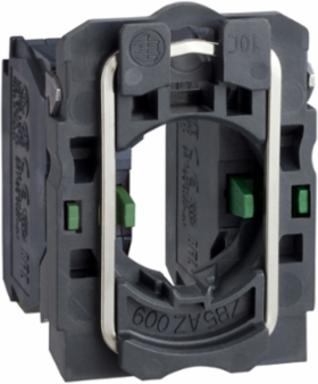

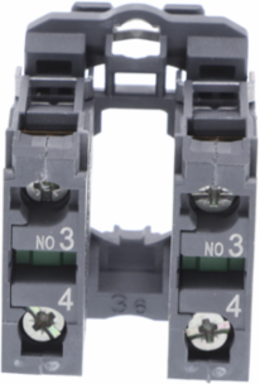

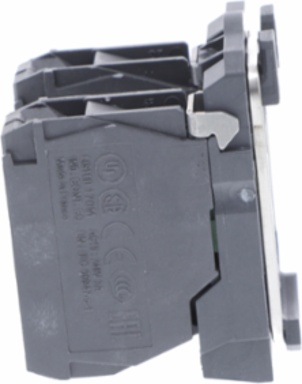

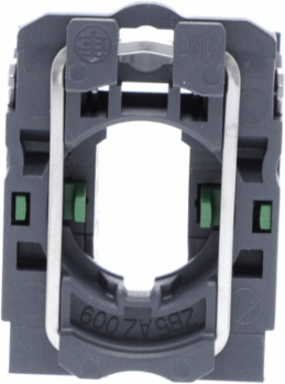

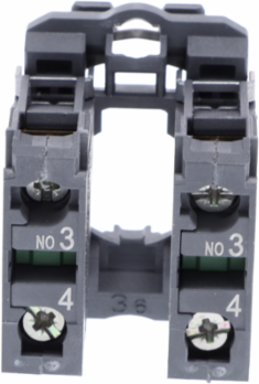

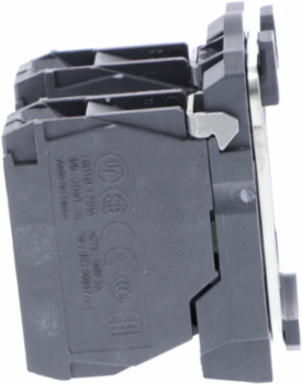

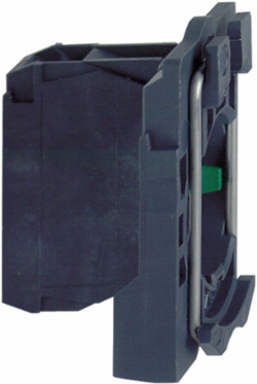

Schneider Electric ZB5AZ103 Harmony XB5 Single Contact Block, 2NO, IP20, Plastic, 32 mm Depth
- MPN: ZB5AZ103
- PPN: SCH-ZB5AZ103
CAD
$40.32
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony XB5, single contact block uses screw clamp terminals. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB5 complete push-button units and selector switches via a clip assembly and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. The base unit to start assembling your plastic push-button or switch. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Features
- Equipped with two normally open (NO) contacts, this assembly allows industrial automation technicians to trigger multiple independent operations such as engaging a run signal and illuminating an status indicator with one physical actuation. This dual-circuit layout optimizes terminal wiring and reduces the need for secondary auxiliary relays inside control cabinets.
- Included out of the box with a rugged, non-conductive plastic mounting base, this assembly is purpose-built for the Harmony XB5 series of $22\text{ mm}$ pushbuttons, selector switches, and pilot lights. The collar ensures alignment, eliminates wobbling, and provides high resistance to chemical exposure and corrosion in harsh manufacturing environments.
- Utilizing premium silver alloy (Ag/Ni) contacts, this device delivers clean, low-resistance electrical paths with an operational current rating up to 10 Amps at 600V AC. It is engineered with a slow-break contact action that ensures clean state changes, preventing signal bouncing when communicating directly with sensitive PLC and distributed control system (DCS) digital inputs.
- Designed with Harmony's toolless, snap-on installation mechanism, this contact block and collar sub-assembly can be mounted or replaced in seconds behind the panel. This modular design drastically reduces assembly time for panel builders and allows maintenance crews to execute quick field swaps during critical downtime windows without disturbing adjacent wiring.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Physical Attributes

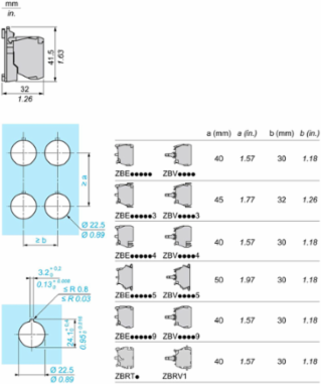

- Cad Overall Depth
- 32 mm
- Cad Overall Width
- 30 mm
Cad Overall Height42 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contact Operation
- slow-break, slow-break
- Device Composition
- fixing collar, body
- Electrical Reliability
- λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
- Shape Of Screw Head
- cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- Contacts Composition
- 2 NO
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Terminals Description Iso N°1
- (13-14)NO, (13-14)NO
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.038373942860167966
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.2 kg CO2 eq., 0.15735194721341966
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 24.43
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 24 %
- Contact Block Type
- single
- Contacts Type And Composition
- 2 NO
- Device Short Name
- ZB5
- Head Type
- standard
- Positive Opening
- without
- Product Or Component Type
- complete body/contact assembly
- Range Of Product
- Harmony XB5
- Sale Per Indivisible Quantity
- 1
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 0.2 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- "ENVPEP2303008EN"
- Pep Verification Date
- 2024-03-24
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; APAC
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; APAC
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Short-circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- Package Weight(Lbs)
- 29.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Customizable0, no
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Operating Travel2.6 mm NO changing electrical state), 4.3 mm total travel)
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Certificate AgencyBV, UL, CSA, DNV, LROS (Lloyds register of shipping)
Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Carbon Footprint Of The Distribution Phase [A4]0.007413259083391998, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.005597534426882791, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0.03592690140845071
Local Publishable Date2026-01-12
Future Imap18.87
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2303008EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Percentage Of Recycled Metal Content12 %
Compatibility CodeZB5
Contacts Materialsilver alloy (Ag/Ni)
Contacts Usagestandard contacts
Fixing Collar Materialplastic
Mechanical Durability10000000 cycles
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
ReturnabilityYes
Software Versionv5.9.4
Tightening Torque0.8-1.2 N.m IEC 60947-1
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Connections Terminals 8 Connections Terminalsscrew clamp terminals
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionXB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.A push button switch's primary purpose is to turn something on or off in industrial applications. This pushbutton power consumption is 0.002W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; APAC
[Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 12 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.2446635849923131
- Environmental Disclosure
- "ENVPEP2303008EN"
- Ip Degree Of Protection
- IP20 IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-03-24
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2303008EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep Code"ENVPEP2303008EN"
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- complete body/contact assembly
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC000041
ETIM 9EC000041
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic sub-assemblies
